CNC Milling Services

CNC machines work by rotating the raw material, which could be round barstock, hex barstock, tubing, a casting, a forging, a slug, etc. Once the raw material is chucked up and spinning, the cutting tool then moves into the spinning raw material and begins moving along its programmed cutting path. The cutting tool removes the raw material to create the desired shape that is required.

When the part requires both turning and milling features, the raw material can be stopped so the machine can move into to mill out the required material. A wide variety of operations such as turning, boring, drilling, milling, reaming, threading, knurling, grooving, trepanning as well as others can be done.

This allows our engineering and manufacturing personnel to program many additional features that can be required on an individual component such as drilled holes, slots, and milled surfaces.

Some CNC turning centers have one spindle, allowing work to be done all from one side, while other CNC turning centers have twin spindles, a main spindle and sub-spindle. Many of our CNC machines have twin spindles with live tooling. When utilizing a twin-spindle machine, a part can be partially machined on the main spindle, then moved to the sub-spindle and have additional work done to the other side of the part, while never coming out of the CNC machine.

Ask A Question

At our machining facilities, medium to high volume parts are often run on Gantry style CNC machines that use an automated Gantry system to load pre-cut slugs, raw castings, raw forgings to the machine as well as extract the completed machined part from the machines. While still other machines are automatically fed & unloaded by robots.

Our machining facilities offer precision CNC lathe turning as well as milling services. We have an extensive line of over 170 traditional “chucking type” CNC lathes, vertical machining centers and horizontal machining centers. Our automatic bar-feeders can accommodate bar stock up to 4 inches or 101.6 (mm) and our hand-loaded chucking lathes can hold machined parts up to 16 inches & 406.4 (mm) in diameter. Our Verticle machining centers can machine parts that are up to 20 inches, (508 mm) cubed, while our Horizontal machining centers can machine parts that are up to 30 inches (762 mm)cubed.

CNC turning centers produce precision turned parts with tight tolerances down to +/- .0001” but can produce parts with larger diameters up to 16” (406.4mm).

ISO 9001:2015 certifications

Capabilities

Machine Capacities	We have an extensive line of over 170 traditional “chucking type” CNC lathes, vertical machining centers and horizontal machining centers. Our automatic bar-feeders can accommodate bar stock up to 4 inches or 101.6 (mm) and our hand-loaded chucking lathes can hold machined parts up to 16 inches & 406.4 (mm) in diameter. Our Verticle machining centers can machine parts that are up to 20 inches, (508 mm) cubed, while our Horizontal machining centers can machine parts that are up to 30 inches (762 mm)cubed.
Raw Materials	Steel, Stainless steel, Aluminum, Brass, Bronze, Plastics, Extrusions as well as cast/extruded Tubing from practically any raw material. We also machine sand castings, permanent mold castings, forgings and extrusions as well.
Industries Served	Fiber Optic, Hydraulics, Industrial Applications, Agriculture, Motorcycles, Pumps, Medical components for carts/beds, Oil & Gas industry, Appliance industry, Motor sports, Mining, RV Industry, Truck/Off-highway components, Safety components, Transmission components, Lift Trucks, Recreational Vehicles, Industrial Packaging, HVAC & many others.
Common Applications	Almost anything. Hydraulic components, water fittings, oil fittings, valve components, air brake components, pump components, truck steer components and many others.
Turnkey Line Ready Parts	We have decades of experience taking responsibility for delivering Tier one Line ready parts requiring almost any secondary operation including, heat treating, plating, grinding, honing, broaching, balancing, splining, painting, plating & assemblies.
VMI (Vendor Managed Inventory)	Our facility has decades of experience doing VMI, Kan Ban, JIT & EDI.
Quality	ISO 9001:2015 Certified & ITAR Registered.

CNC machining and zinc die casting services

Lowest Total Cost

Design For Manufacturability

Technology & Automation

Increased Turns & Reduced Lead Times

Additional Information

Benefits of Partnering with Our CNC Milling & Turning Machining Facilities

Our machining facilities average over 63 years in the custom milled parts business. We have an extensive line of over 170 “chucking type” CNC lathes, vertical machining centers and horizontal machining centers. Our automatic bar-feeders can accommodate bar stock up to 4 inches or 101.6 (mm) and our hand-loaded chucking lathes can hold machined parts up to 16 inches & 406.4 (mm) in diameter. Our Verticle machining centers can machine parts that are up to 20 inches, (508 mm) cubed, while our Horizontal machining centers can machine parts that are up to 30 inches (762 mm)cubed.

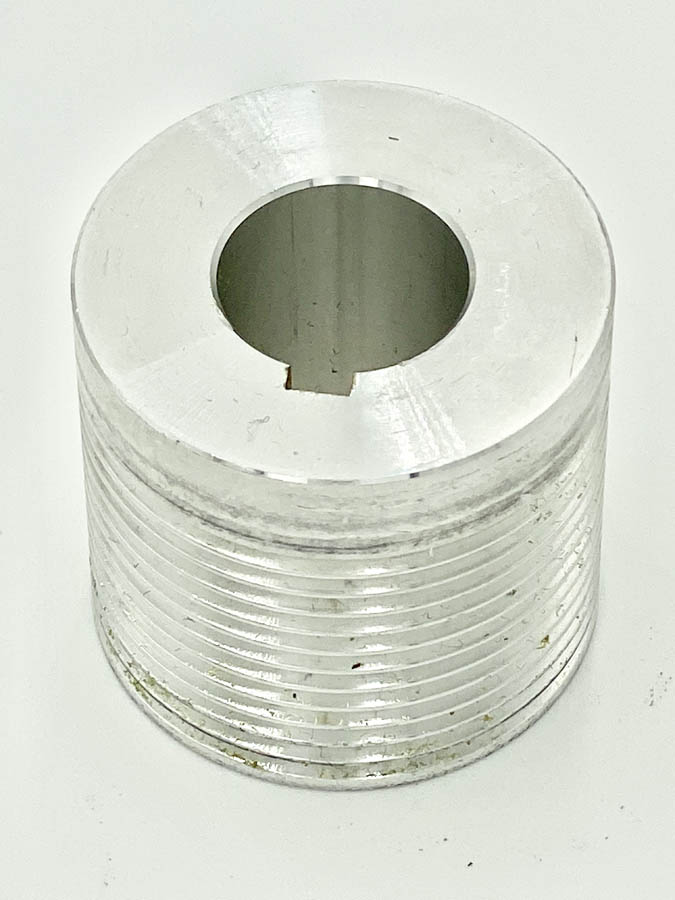

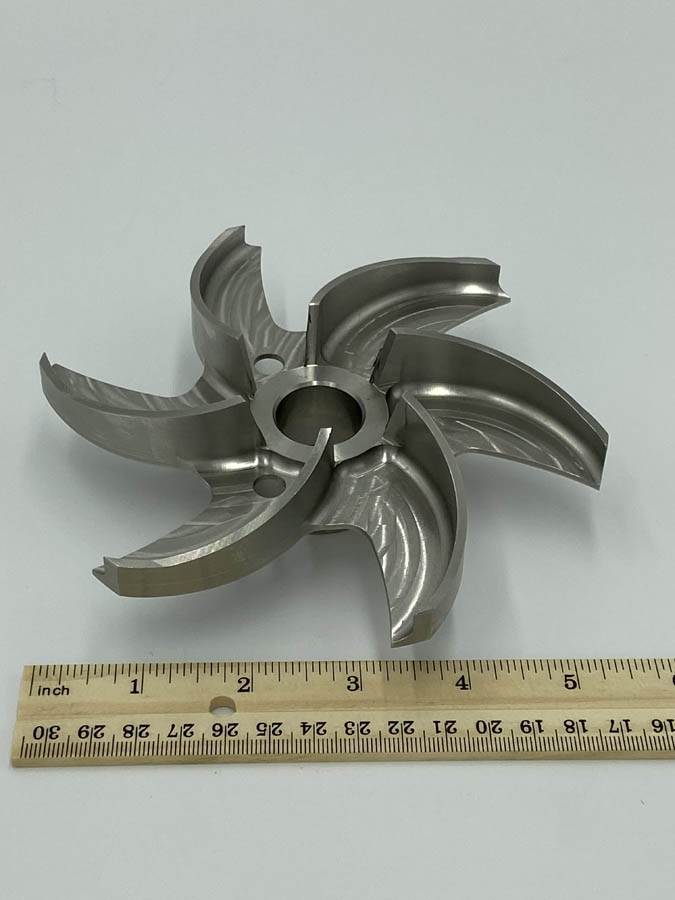

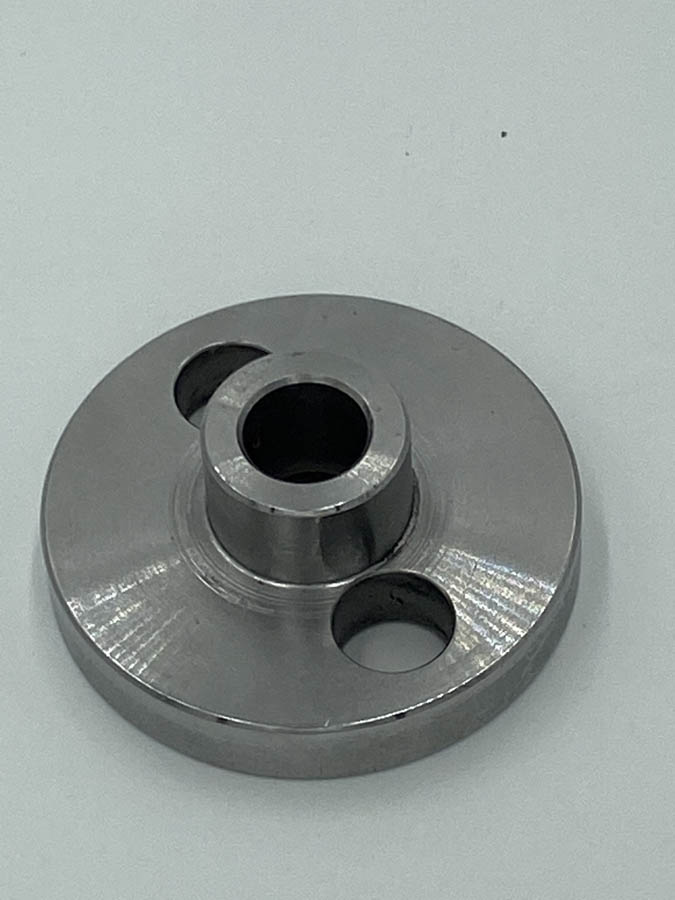

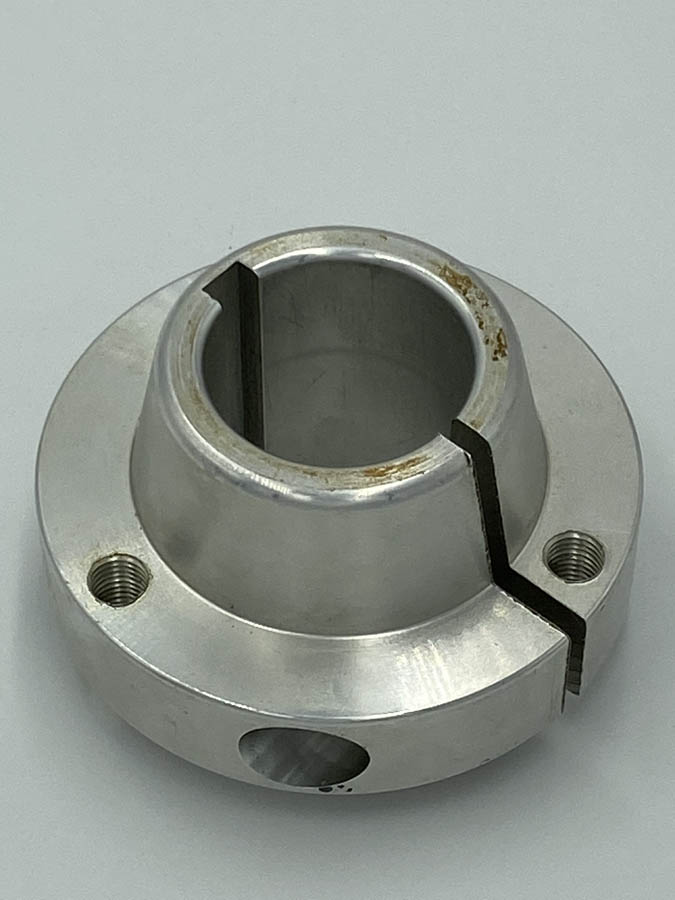

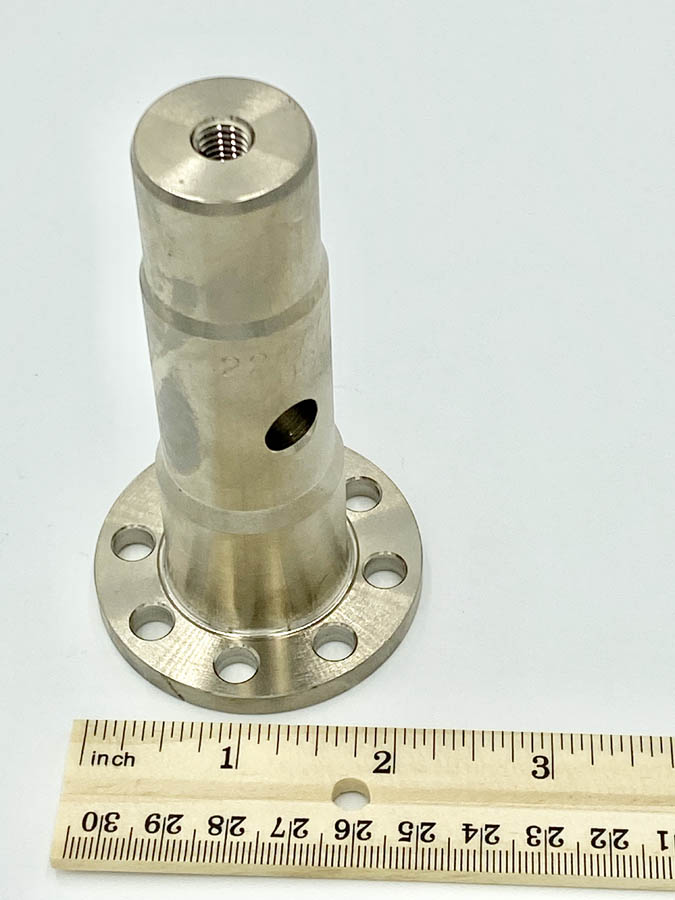

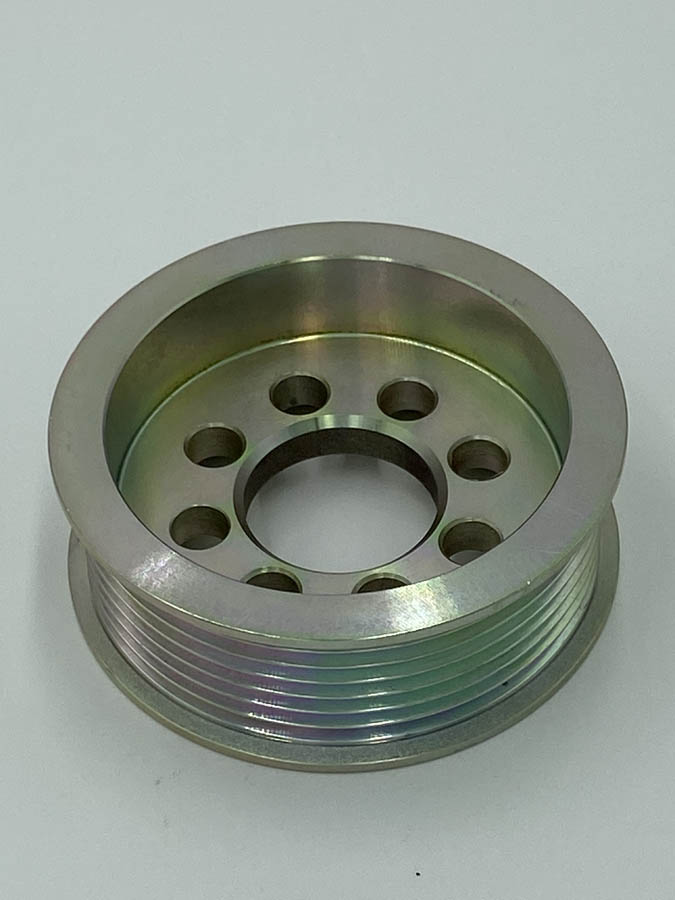

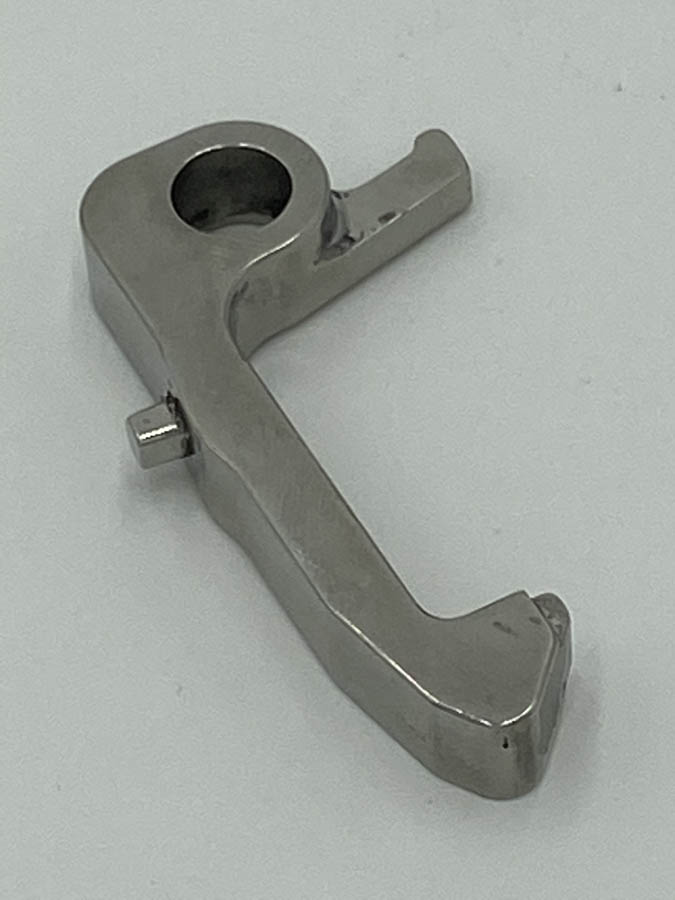

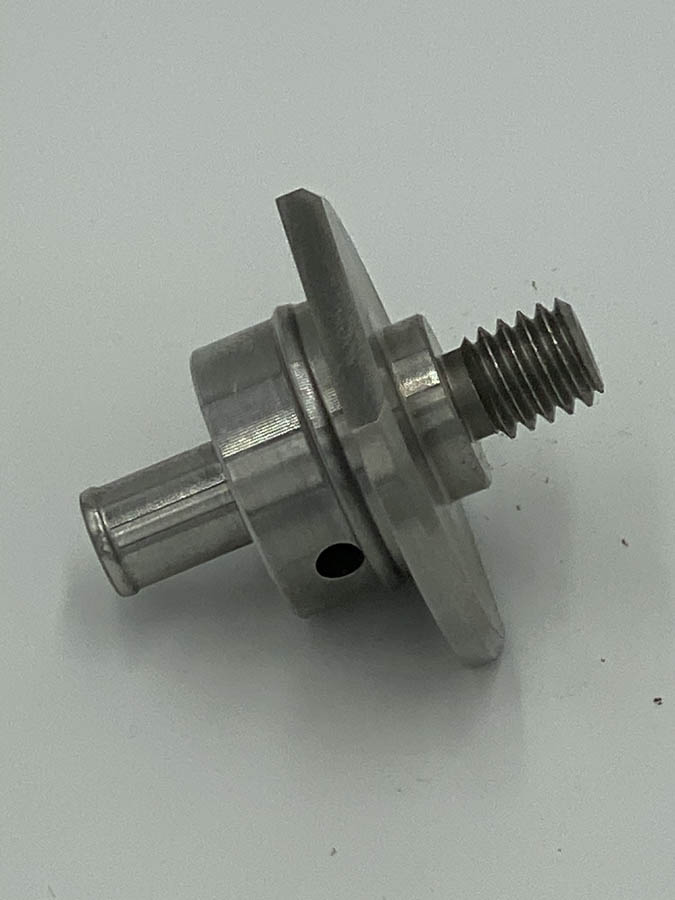

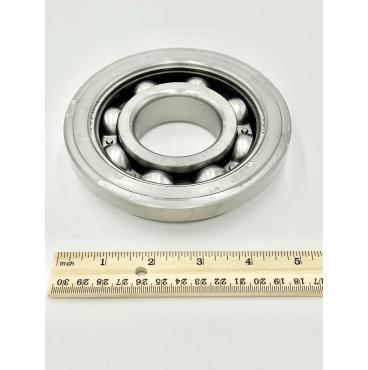

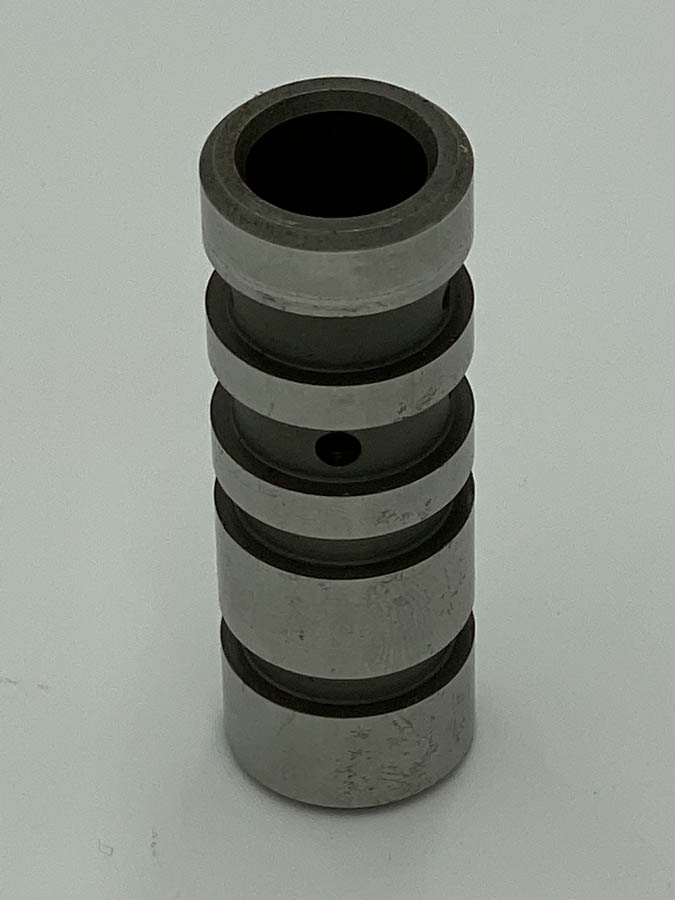

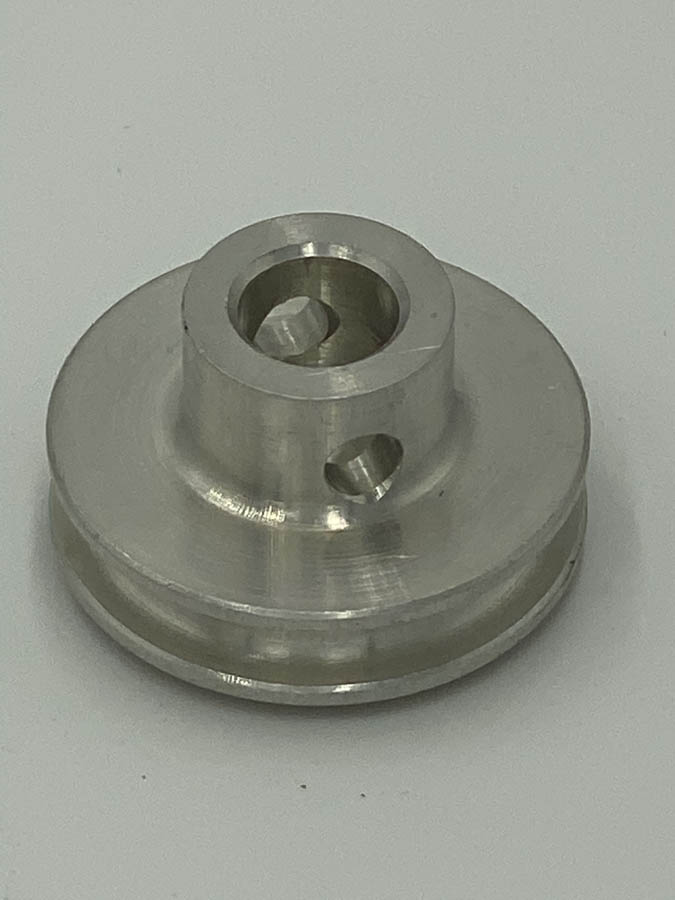

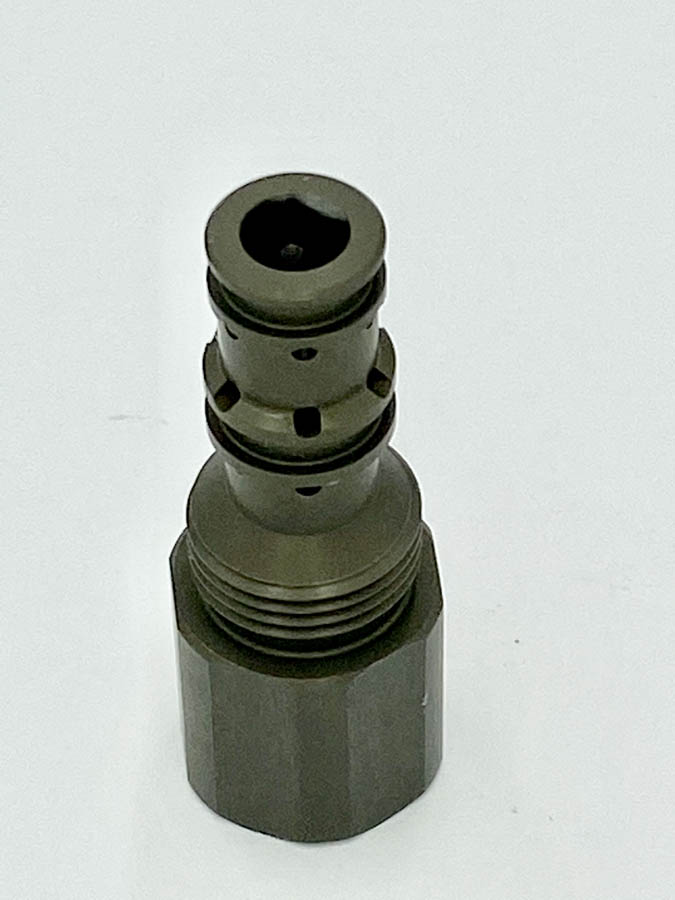

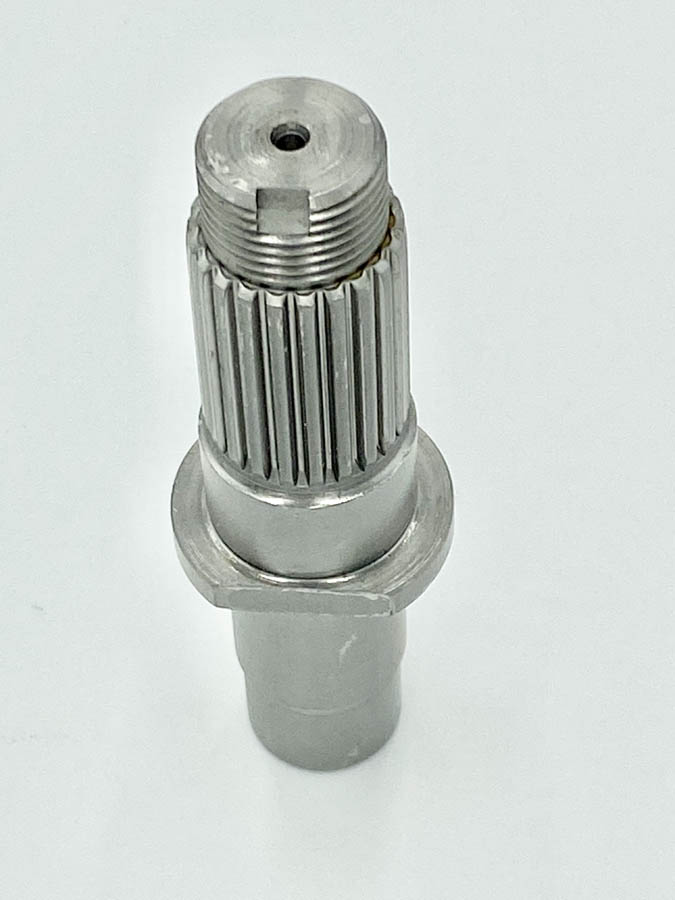

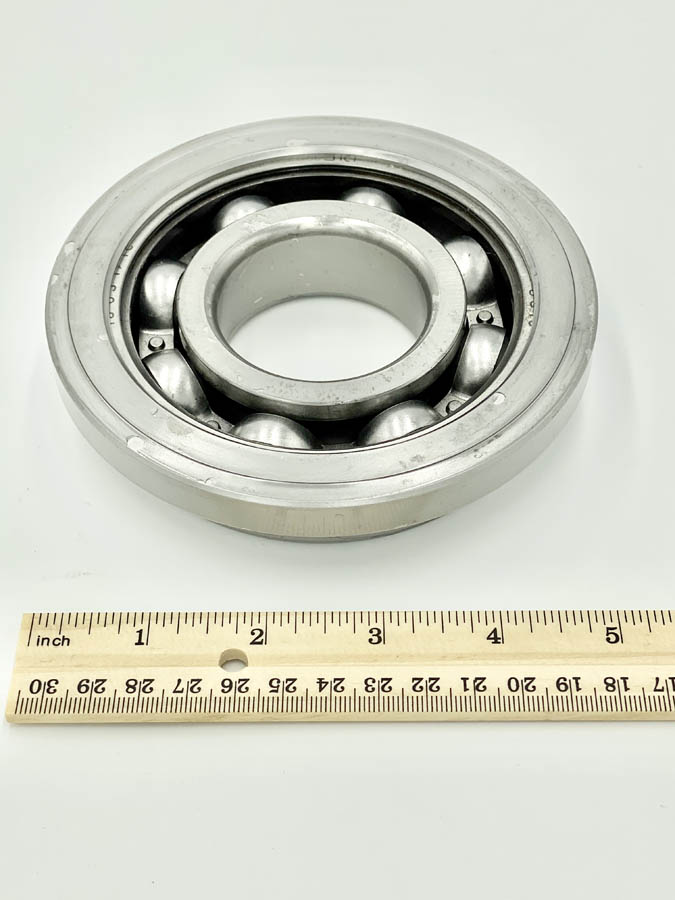

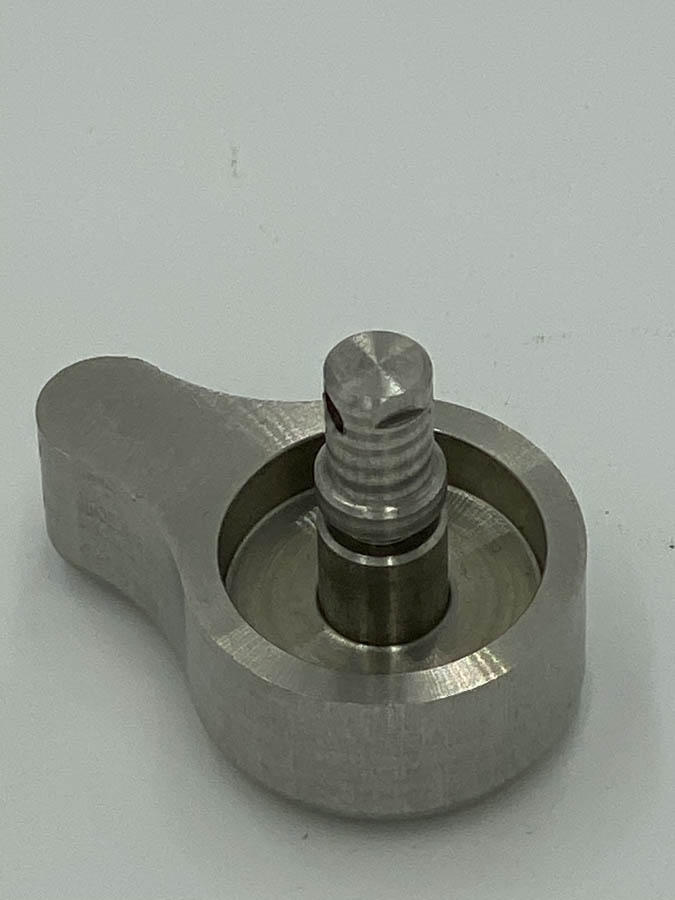

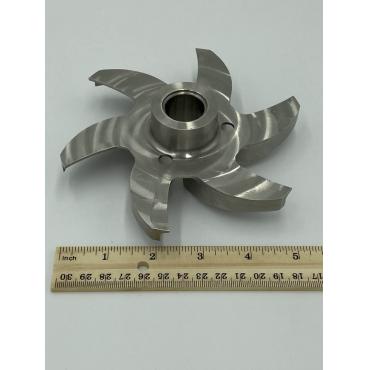

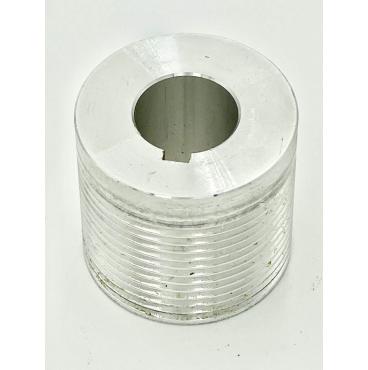

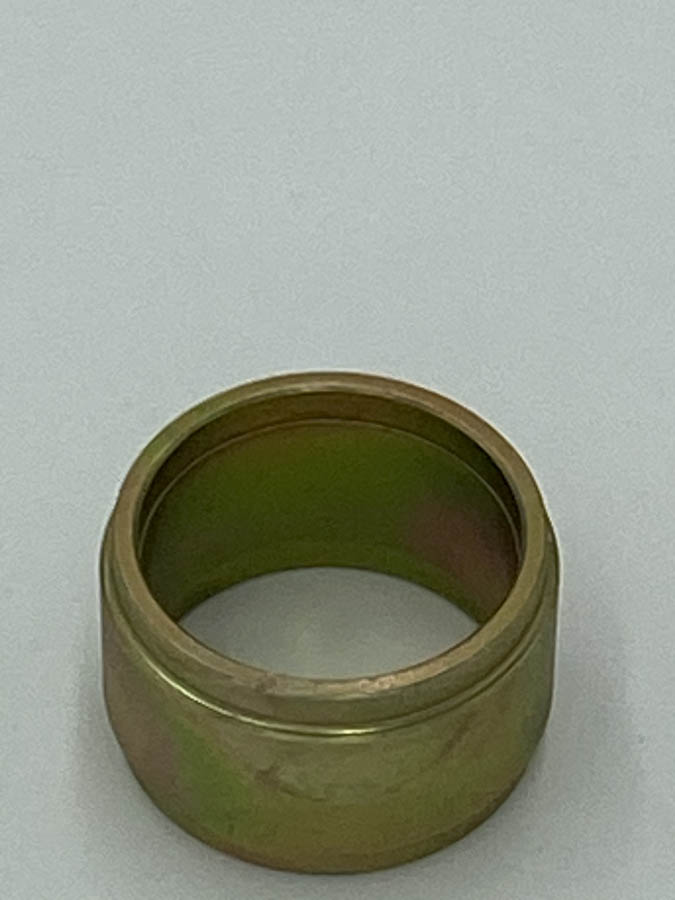

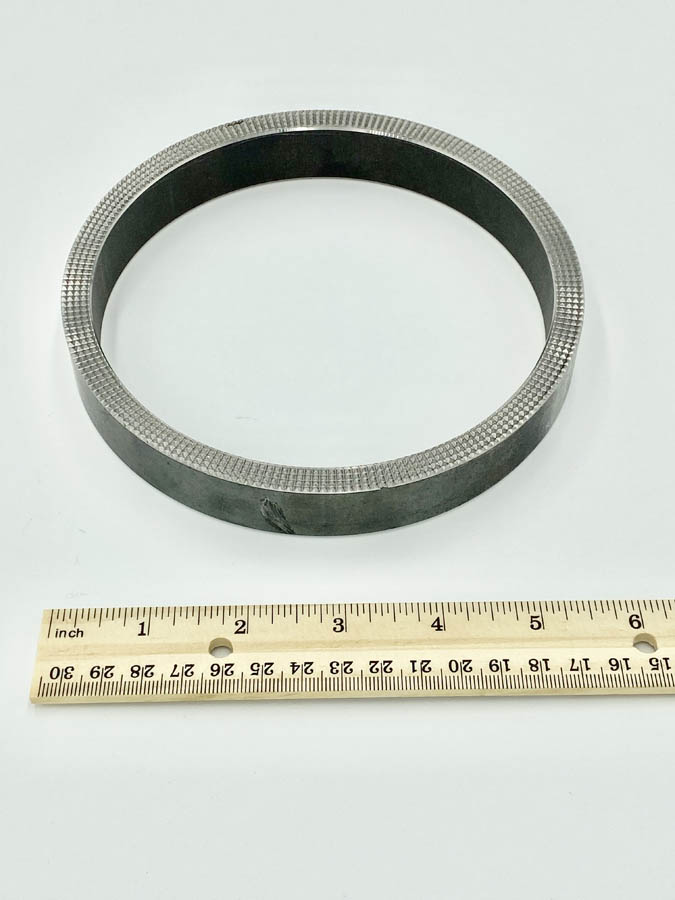

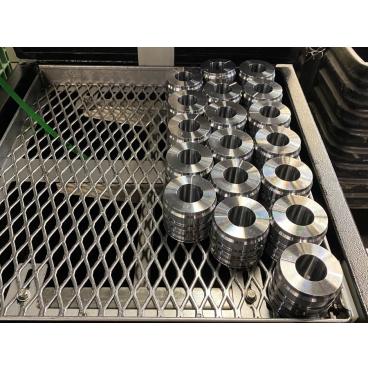

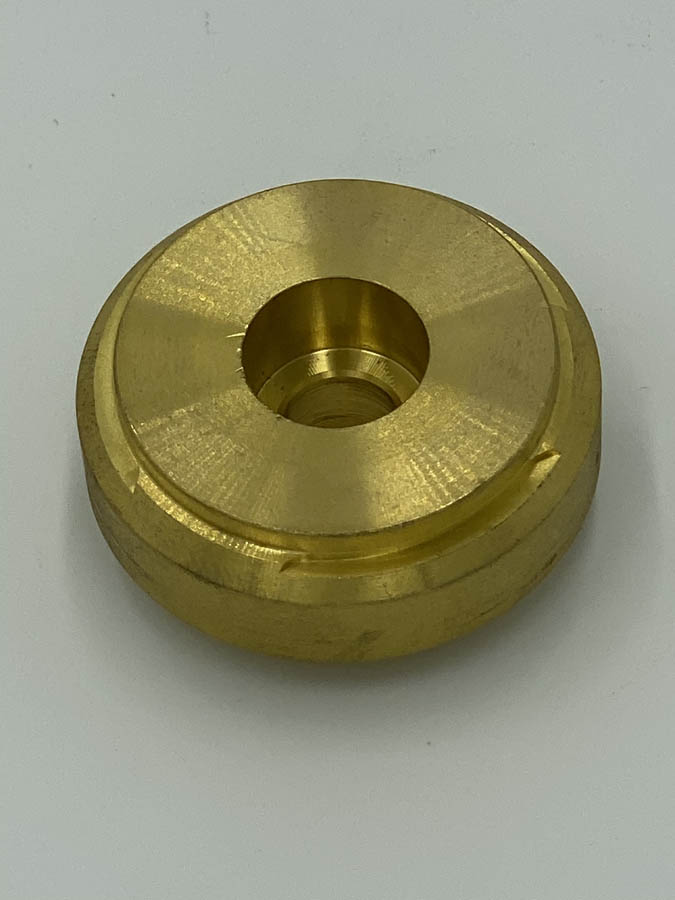

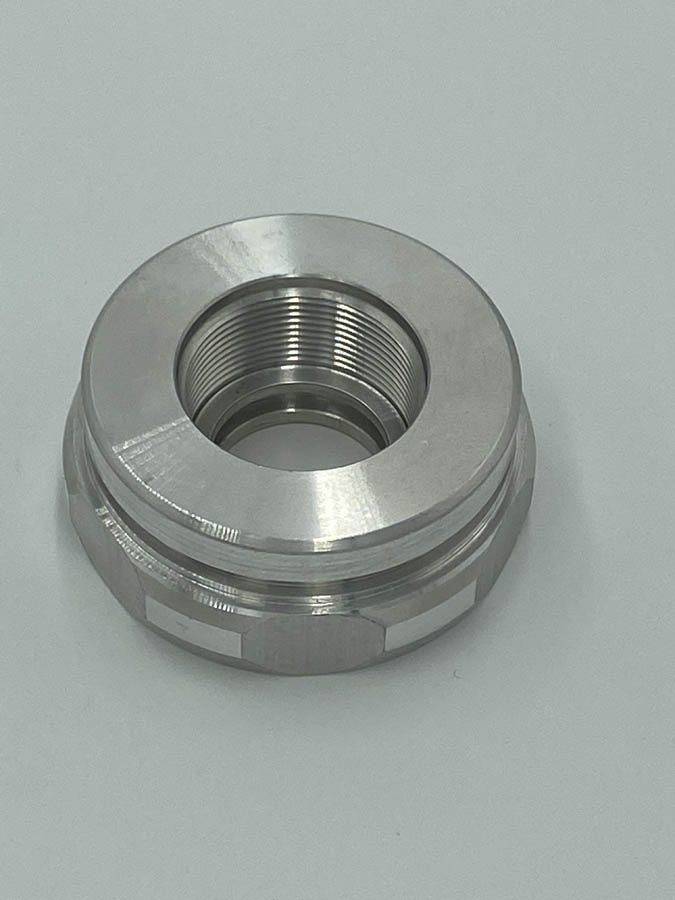

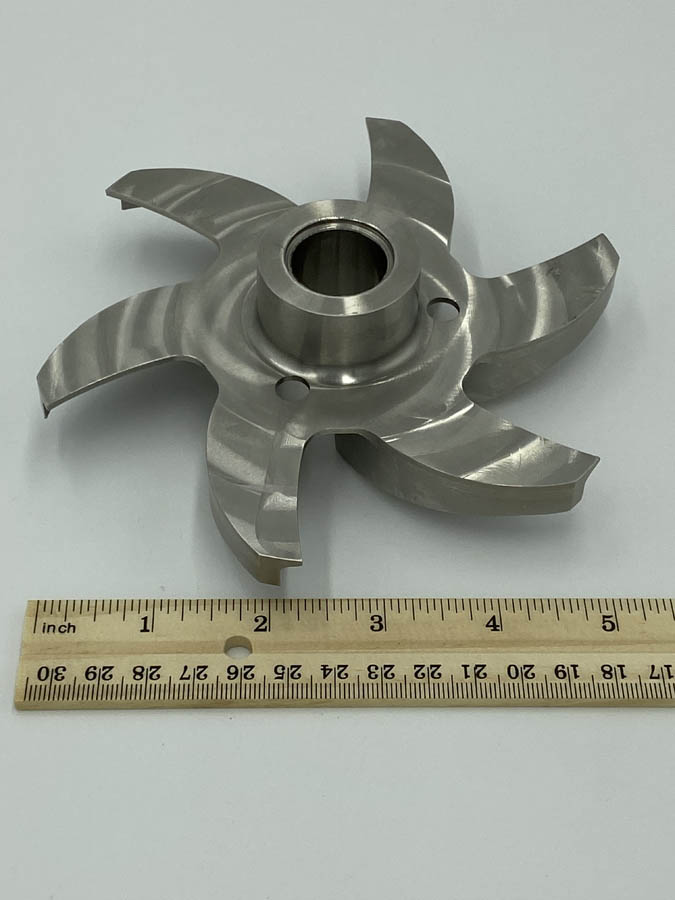

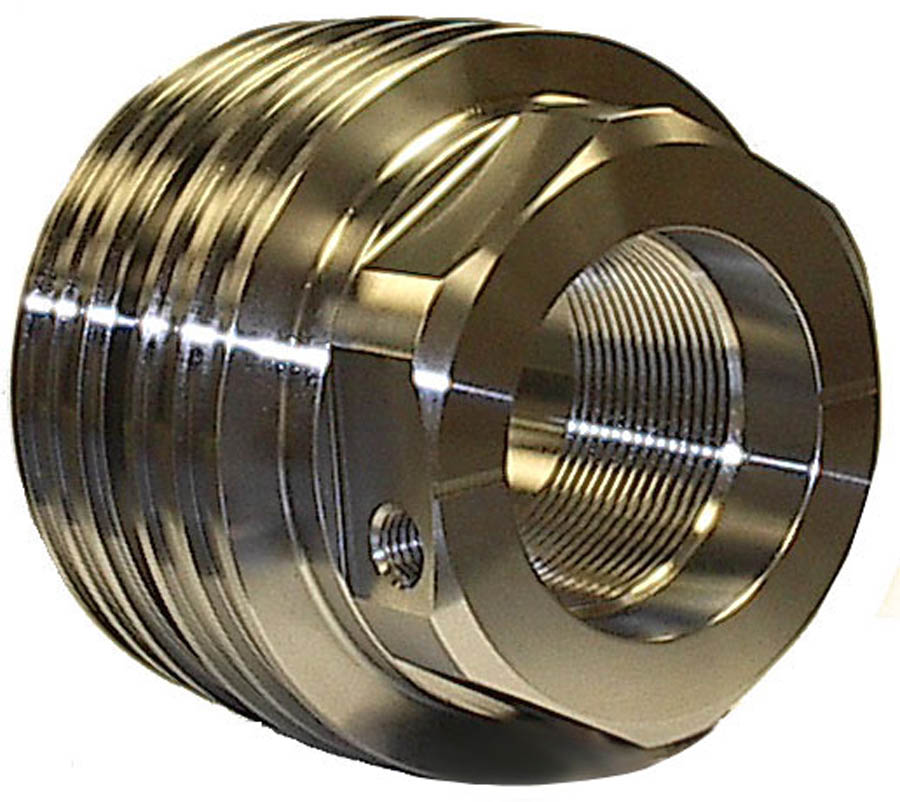

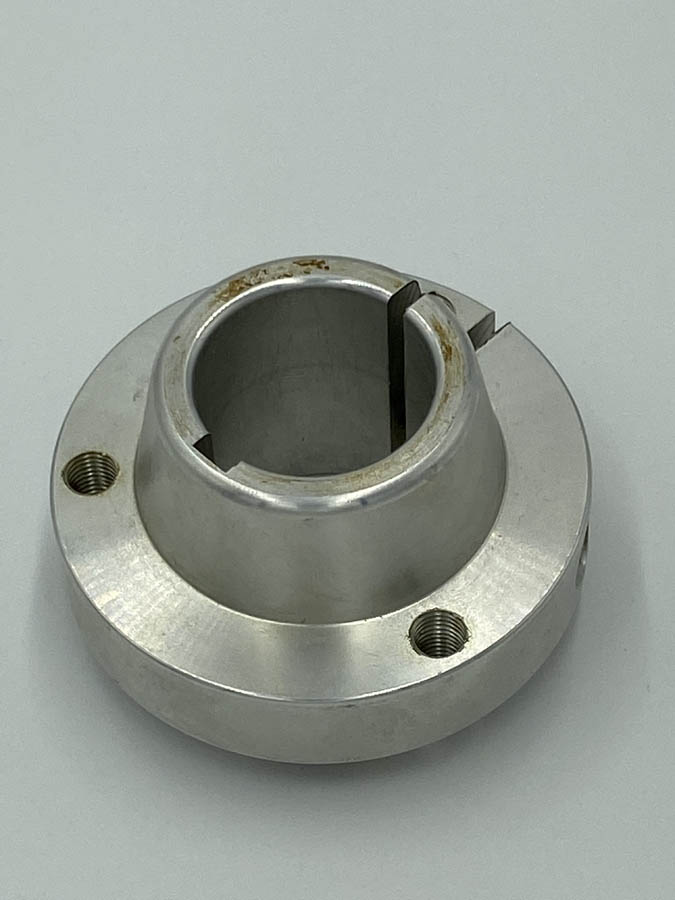

Our engineers have decades of experience in CNC milling services. We will review each part and make sure it is being run on the most economical machine possible. View our photo gallery of CNC milled parts we have crafted.
We have strong project engineers to help walk projects move from concept into full production. They will act as Program Managers. If fixturing is required to be built, we will want to have upfront APQP discussions. If the raw material that is being machined is a raw casting or raw forging, we want to have open discussions to review where we plan on clamping the part in the fixture to make sure we are not clamping on any parting lines or grinding areas.
Our customer service team has decades of experience doing Vendor Managed Inventory. We ship bar-coded products via Kan Ban, EDI, JIT, or practically any release system. Read testimonials from satisfied customers.
Our machining facilities run between 2 and 3 shifts or 17 to 24 hours per day 5 days per week.
Raw Materials: Bar stock materials include Steel, Stainless steel, Aluminum, Brass, Bronze, Plastics, Extrusions as well as Cast & Drawn tubing using practically any raw material. Castings include Grey & Ductile iron castings, Stainless steel castings, Aluminum sand, Aluminum permanent mold castings, Aluminum Die-castings, as well as investment castings. We also machine a wide variety of Forgings in a wide variety of alloys.
Industries Served: Fiber Optic, Hydraulic, Medical components for surgical equipment, Industrial applications, Agriculture, Motorcycles, Pumps, Medical components for carts/beds, Oil & Gas industry, Truck/Off-highway, Appliance industry, Lock industry, Motorsports, Mining, RV Industry, Safety components, Switches & Connectors, Transmission components, Small Engine, Lift Trucks, Lawn and Garden, Recreational Vehicles, Industrial Packaging, Furniture applications, HVAC, Lighting Industry and many others.
Common Applications: Almost anything. Hydraulic components, water fittings, valve stems, air brake components, bleed screws, pump components, threaded bushings, turned shafts, assemblies, and many others.
Turnkey Line Ready Parts: We have decades of experience taking responsibility for delivering Tier one Line-ready parts requiring almost any secondary operation including, heat treating, plating, grinding, honing, broaching, balancing, splining, painting, plating & assemblies.
VMI (Vendor Managed Inventory): Our facility has decades of experience doing VMI, KanBan, JIT & EDI.
Quality: ISO 9001:2015 Certified & ITAR Registered.
Low, Medium and high volumes: We run everything from prototype parts, to parts in the hundreds, parts into the thousands and even some families of parts that run using robots into the hundreds of thousands of pieces. We also have over 30 CNC Swiss machines all with automatic bar feeders if you have those requirements.
We have a robust quality department with the ability to fully inspect every part that we produce. CMM machines, roundness machines, 10 different vision systems, air gauging, pin gauges and any basic gauges required.
In-house laser marking capabilities: Automatic bagging machines, automated O-Ring assemblies, and wide variety of assembly capabilities.

Common applications of CNC Milling/Turning include almost anything:

Hydraulic components
Medical components
Truck Water fittings
Valve stems
Air brake components
Bleed screws
Pump components
Threaded bushings
Hydraulic cages
Machined tubing
Machined castings
Machined forgings
and many others

Steel
Stainless Steel
Aluminum
Bass
Bronze
Plastics
Extrusions
Drawn & Cast Tubing
Practically Any Raw Material
Sand Castings
Permanent Mold Castings
Investment Castings and Forgings

Fiber Optic
Hydraulic
Medical components for surgical equipment
Industrial applications
Agriculture
Marine engines
Lift Trucks
Motorcycles
Pumps
Medical components for carts/beds & Equipment
Oil & Gas industry
Appliance industry
Truck components
Lock industry
Motor sports
Mining
RV Industry
Safety components
Switches & Connectors
Transmission components
Small Engine
Off-Highway components
Lawn & Garden
Recreational Vehicles
Industrial Packaging
Furniture applications
HVAC
Lighting Industry
..and many others.

What is CNC Milling?

CNC machines work by rotating the raw material, which could be ( round barstock, hex barstock, tubing, a casting, a forging, a slug, etc.) Once the raw material is chucked up and spinning; The cutting tool then moves into to the spinning raw material and begins moving along its programmed cutting path. The cutting tool removes the raw material to create the desired shape that is required.

When the part requires both turning and milling features. The raw material can be stopped so the machine can move into to mill out the required material. A wide variety of operations such as turning, boring, drilling, milling, reaming, threading, knurling, grooving, trepanning, as well as others, can be done.

This allows our engineering and manufacturing personnel to program many additional features that can be required on an individual component such as drilled holes, slots, and milled surfaces.

Some CNC turning centers have one spindle, allowing work to be done all from one side, while other CNC turning centers have twin spindles, a main spindle and a sub-spindle. Many of our CNC machines have twin spindles with live tooling. When utilizing a twin-spindle machine, a part can be partially machined on the main spindle, then moved to the sub-spindle and have additional work done to the other side of the part, while never coming out of the CNC machine.

One of the key advantages is the ability to run low, medium and high volume production. You can machine any material in almost any form of bar stock, extrusion, tubing, sand casting, permanent mold casting, die casting as well as forgings and powdered metal.

Our machining facilities have over 170 CNC machines and we can partner with you to determine the best machine for each particular part. We have CNC machines with pallets for easy/efficient loading and unloading. We have machines with gantry loading robot arms that can automatically feed raw blanks into a machine and then remove the finished machined part out the other side of the machine.

We also have some fully automated robotic cells that can feed raw material in and remove the finished parts with robots and place them in finished containers.

Our machining facilities have over 170 CNC machines with capabilities of .050 inches in diameter to 16 inches in diameter and lengths up to 24 inches long. Our vertical machining centers go up to 20” cube while our horizontal Machining centers go up to 30” cube. Many machines have twin spindles, gantry loaders as well as robotic loading & extraction from the machines.

Materials Machined: Bar Stock materials including Steel, Stainless steel, Aluminum, Grey & Ductile iron castings, Aluminum as well as SS castings, Cast tubing, Drawn tubing, Forgings of many different materials and many others.
