Wire Forms, Springs & Welded Assemblies
We have been producing Wire Forms, Springs, Clips, Welded assemblies as well as Four-Slide & Multi-Slide parts for 68 years.
Our zinc alloy die casting facility has been in business for 54 years, we have ZERO debt and we have had 9 consecutive years of providing over 99% on-time deliveries to our customers. We have been awarded 8 NADCA awards for designing the best new die-cast part.
We truly offer the best design and engineering expertise available in the industry. We have excellent manufacturing engineers with decades of experience working in unison with the most advanced CAD and MAGMA casting simulation software available.

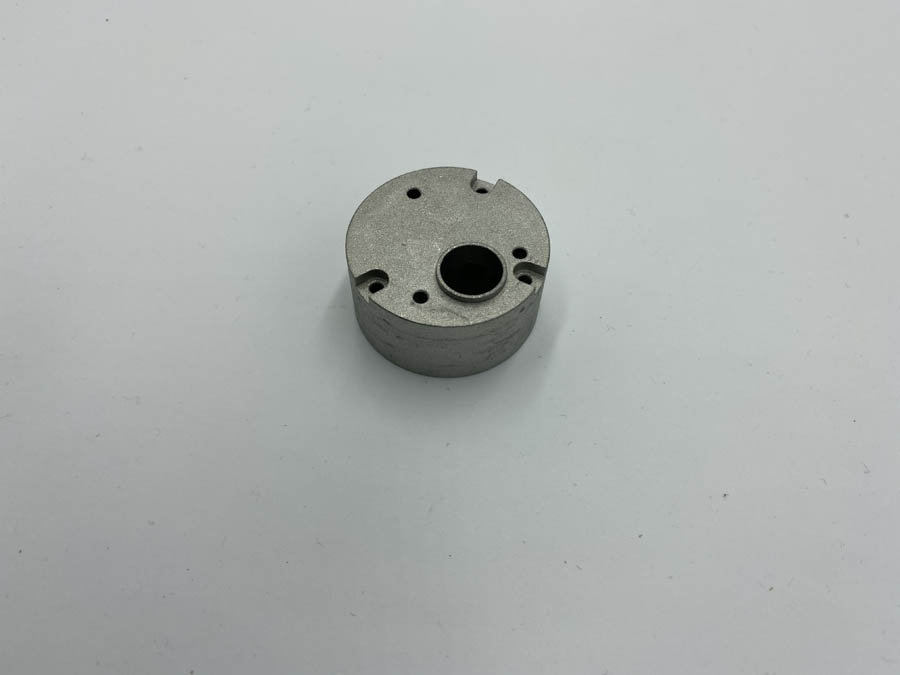

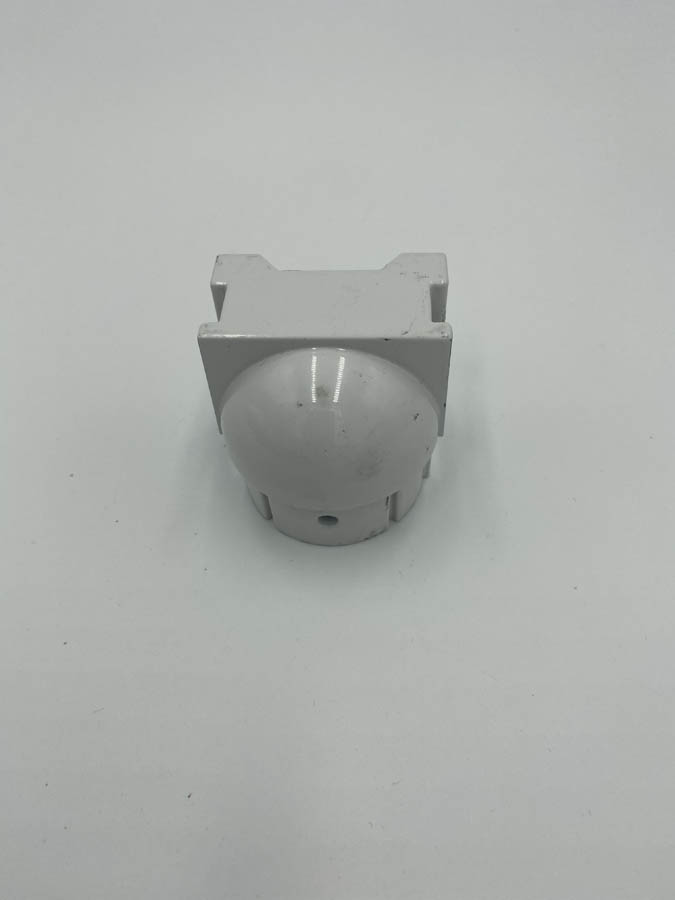

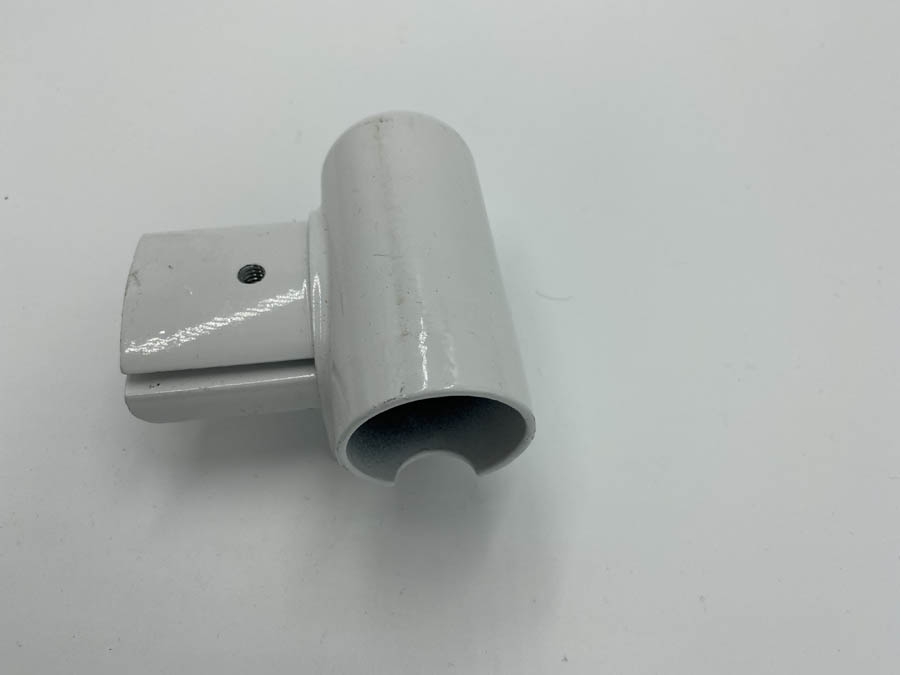

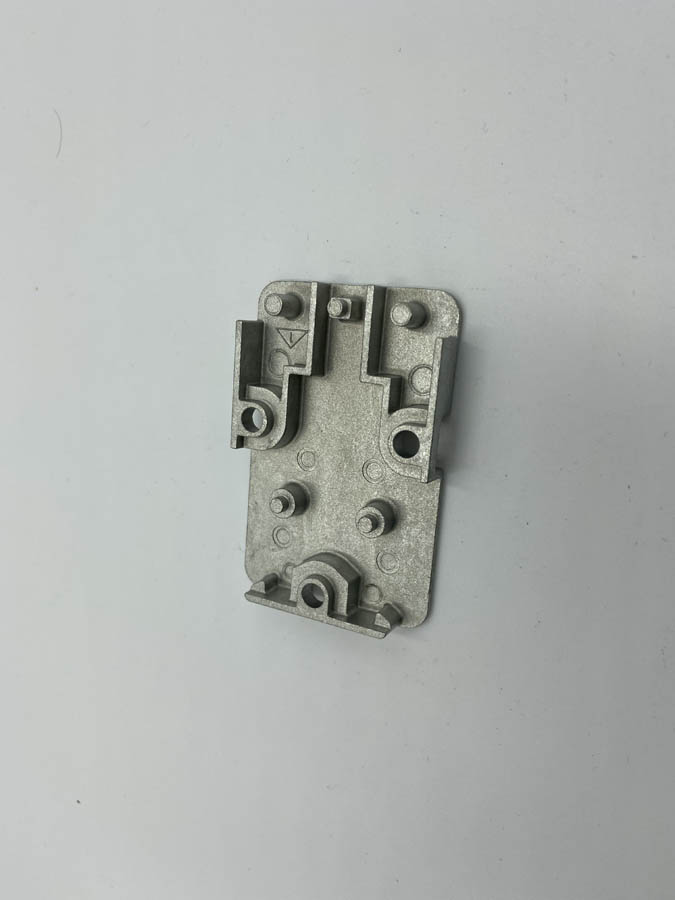

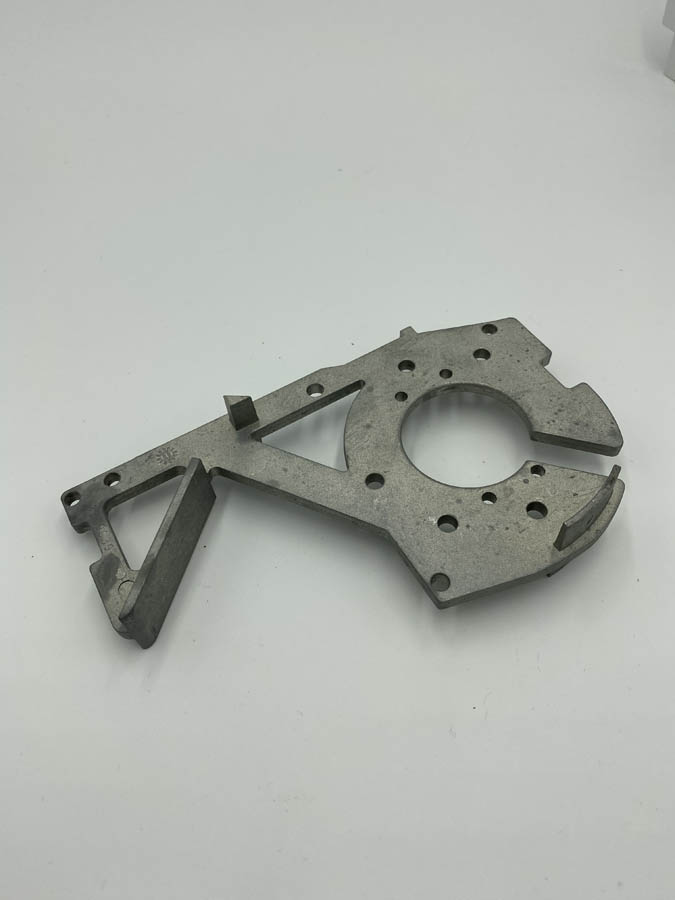

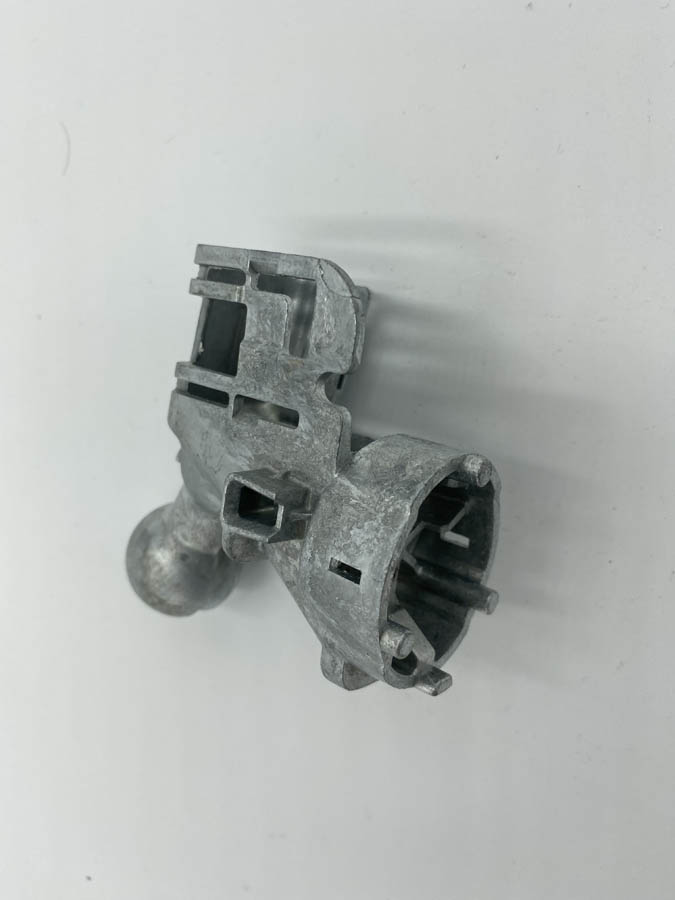

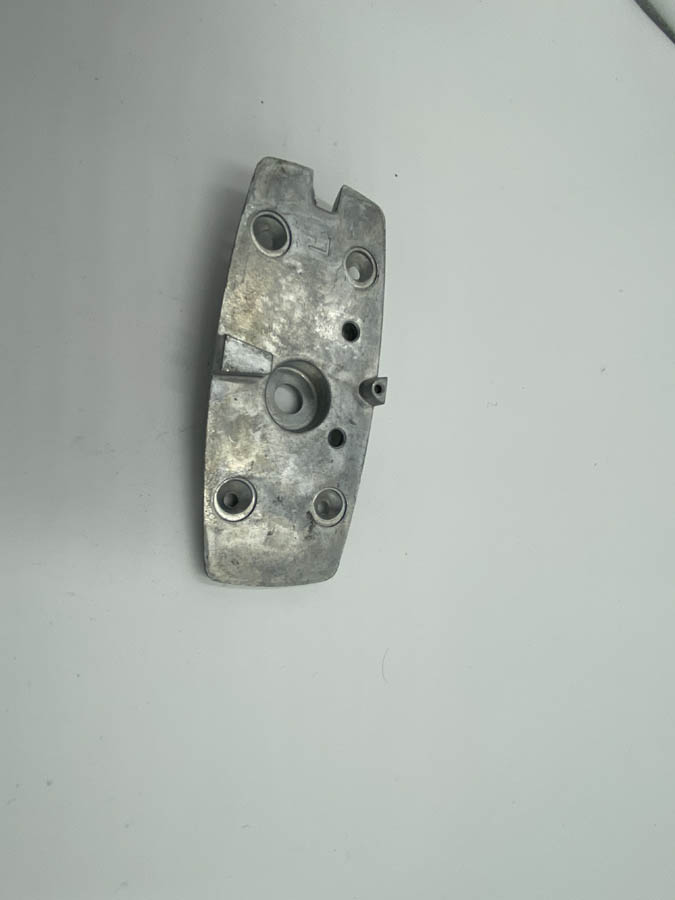

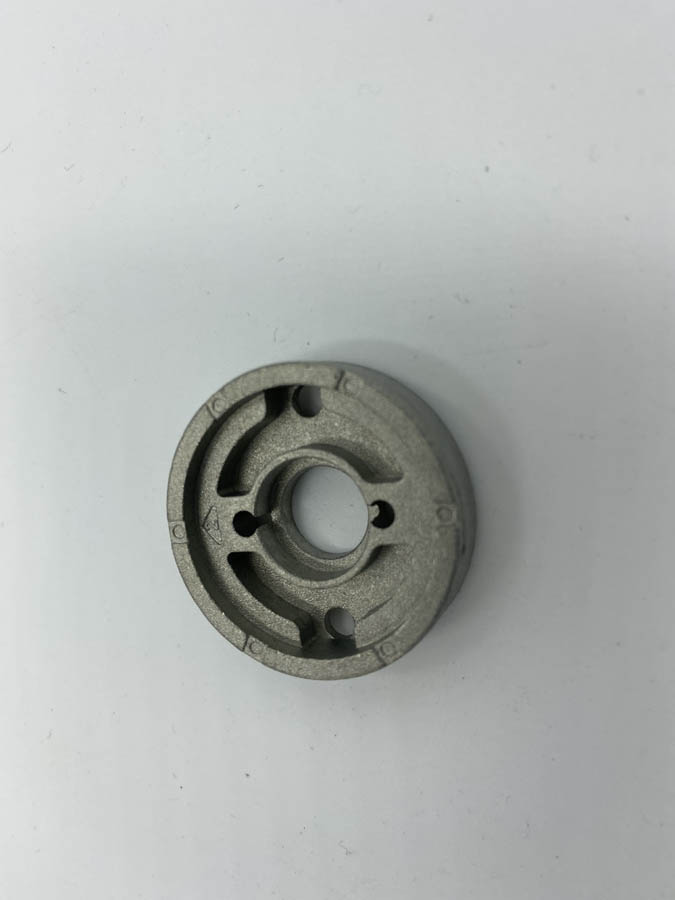

Our team has decades of experience delivering Tier 1 line-ready parts. We take complete responsibility for shot blasting, plating, drilling, tapping, as well as powder coating finished parts to meet your specific precision zinc die casting needs. See some of our work here.
Advantages of Precision Zinc Die Casting:
- Long tool life, many times into the millions of shots.
- Net Shape Casting
- Long Tool Life
- Fast Cycle Times
- Low Melting Point
- High Strength Properties
- Thin Wall Capability
- Good Creep Resistance
- Superior Finish Characteristics
- Excellent Conductivity
- Sustainability
Capabilities
| 36 Die Cast Presses | 30 Techmire presses ranging from 22 to NTX88 machines. 6 conventional presses, including 2 fully automated Frech 80 ton cells with extraction robots. |
| Size of parts range | Ounces to 1.5 pounds. |
| Ontime Deliveries | We have provided 99% on time delivery or above on all of our received orders for 9 consecutive years. |
| Zinc Alloys Offered | ZAMAK 2, ZAMAK 3, ZAMAK 5, ZA-8 |
| Quality | ISO 9001:2015 Certified. ISIR, PPAP, APQP, PQ Squared project management approach. |
| Turnkey Tier 1 Line Ready parts | We have decades of experience taking complete responsibility for delivering, machined, plated, painted, powder coated and assembled zinc die castings. |
| In-house engineering & program management | Our engineers have decades of experience taking projects through the APQP process. From CAD model through mold construction ISIR/PPAP. We use a PQ squared team approach for project management. |
| MAGMA | We use MAGMA simulations on every CAD model prior to building a new mold. Our tool design team has the highest training possible on MAGMA. |
| NADCA Awards | We have been awarded 8 NADCA awards for the best new die casting design. |
| In House Tool Room | We have a complete in-house tool room where we build the majority of our new dies & maintain all our current dies in-house. We track the number of shots on every die we have in house & document all maintenance. |
Lowest Total Cost
Design For Manufacturability
Technology & Automation
Increased Turns & Reduced Lead Times
Additional Information
- Our manufacturing facility has been in business for 54 years, we have NO DEBT, we continue to invest in the best equipment & technologies available anywhere in the world.
- Our on-time delivery has stayed above 99% for the last 9 consecutive years.
- 36 Die Cast Presses: 30 Techmire presses ranging from 22 to NTX88 machines. 6 conventional presses, including 2 fully automated Frech 80 ton cells with extraction robots.
- Zinc Alloys Offered: ZAMAK 2, ZAMAK 3, ZAMAK 5, ZA-8NADCA Awards: = We have been awarded
- We have been awarded 8 NADCA awards for the best new die casting design.
- Quality: ISO 9001:2015 Certified ISIR, PPAP, APQP, PQ Squared project management approach.
- Size of parts ranges: Ounces to 1.5 pounds.
- We provide exceptional engineering, program management & product launch assistance to every new part number we produce. Our engineers have decades of experience taking projects from CAD models into mold construction through a successful ISIR/PPAP approval process. Our TEAM uses a product launch system called, (PPR) Phase Product Rollout. This is a robust process to manage all new part launches & tool builds.
- We also utilize Magma in our PQ2 development process and our Phase Product Rollout. Our goal is to make sure each part has been engineered prior to tool construction and that the gating, as well as venting system, is designed to produce the best possible part prior to tool construction.
- We provide excellent customer service and our quality ratings are among the best in our industry.
- MAGMA: We use MAGMA simulations on every CAD model prior to building a new mold. Our tool design team has the highest training possible on MAGMA.
- We design all of our zinc dies in-house.
- We fabricate over 90% of our Zinc tools in-house.
- We complete a 17 point die cleaning procedure after every production run & we keep a shot count on every tool in our facility.
- We have been awarded 8 NADCA awards for the best new die-cast design.
- Turnkey Tier 1 Line Ready parts: We have decades of experience taking complete responsibility for delivering millions of machined, plated, painted, powder-coated & assembled zinc die castings to customers all over the U.S. & Mexico.
- In House Tool Room: We have a complete tool room where we build the majority of our new molds & we maintain all our current molds in-house. We also track the number of shots on every die-cast part we produce.

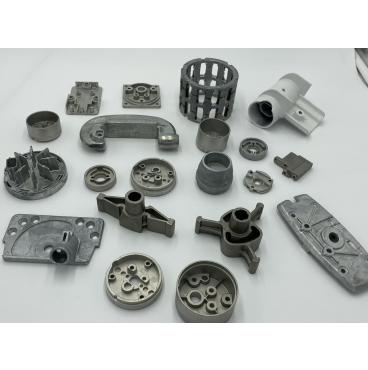

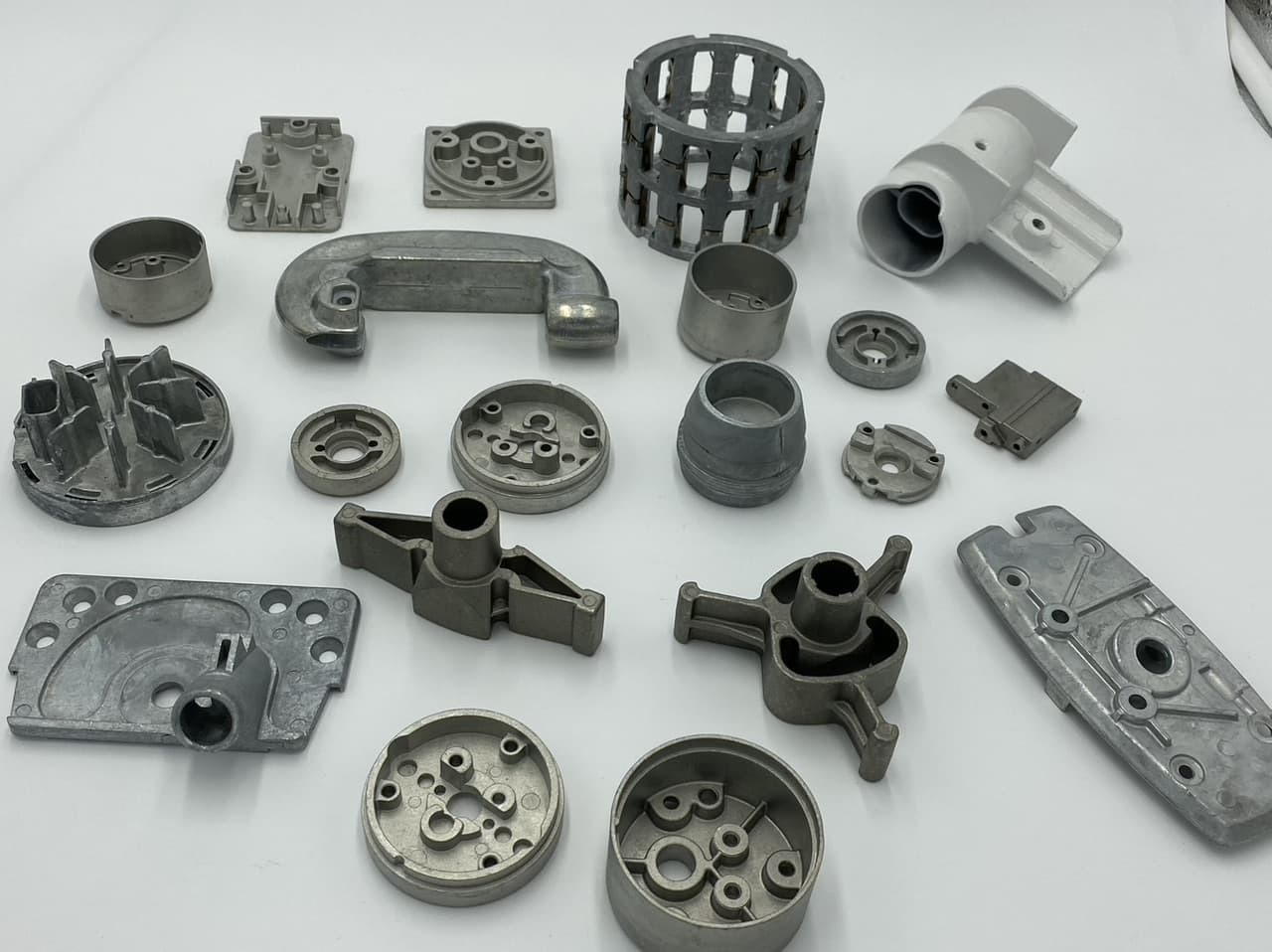

Common Applications of Zinc Die Castings:
- Brackets
- Lock components
- Cups
- Tags
- Shields
- Clamps
- Latches
- Motor housings
- Covers
- Plates
- Clevises
- Relay frames
- Counter weights
- Military components
- Automotive components
- Heat sinks
- Frames
- Washers
- ..and many others
- Zamak 2
- Zamak 3
- Zamak 5
- ZA-8
- Automotive
- Appliance
- Hardware
- Recreation
- Military
- Furniture
- Industrial Products
- Motors
- Electronics
- ..and many others.
We have 30 high-speed Techmire zinc die-cast presses and 3 state of the Frech conventional cells with robots.
Precision zinc die casting is one of the most efficient manufacturing processes available to produce near-net shape metal parts using a wide variety of zinc alloys. You can generate significantly more strength, as well as metal conductivity than you could get from an injection-molded plastic part. Zinc die castings can be produced with little draft, create many different holes using side actions, provide excellent surface finishes, do in die decating and often times produce parts that require little to no secondary operations.
Similar to injection molding, you build a custom mold made out of tool steel and then place that mold into the die-cast press. The die-cast press applies enormous pressure to inject the molten zinc material into the steel mold. Hence, creating the term High Pressure die casting.
One of the main benefits of Zinc die castings over aluminum die castings is that the zinc material melts at a much lower temperature compared to aluminum. 700-760 degrees for zinc versus 1,000 to 1,100 degrees for aluminum. Because the zinc material melts at a temperature 300-400 degrees lower; The pumping mechanism for pulling the molten zinc material can be located directly in the bath of zinc material. Hence the name (Hot Chamber die casting) vs Aluminum where the aluminum must be ladled into the die-cast press, also referred to as (Cold Chamber die castings). As a result of the material being 300 to 400 lower temperature, this results in a much longer tooling life for zinc die-cast molds usually lasting over 1 million shots where aluminum molds may only last 75,000 to 250,000 shots.
You can convert parts from a wide variety of other manufacturing processes as well as multiple-piece assemblies into zinc die castings. Some of the other immediate benefits of zinc die casting include.
- Long tool life, many times into the millions of shots.
- Net Shape Casting
- Fast Cycle Times
- Low Melting Point
- High Strength Properties
- Thin Wall Capability
- Good Creep Resistance
- Superior Finish Characteristics
- Excellent Conductivity
- Sustainability
Explore Other Manufacturing Solutions
Explore Manufacturing Solutions
FlowForming
We have enormous experience at providing an average of an 85% reduction in the amount of raw materials required in our customers' applications.
Aluminum Sand, Permanent mold, Low Pressure & Air set castings
Our specialty coating facilities are two of the most advanced coating facilities in the World. They have been in business for over 117 years.
View Some of Our Case Studies
Converted 4 purchased parts, 1 assembly operation & 4 secondary operations into a complete Zinc die casting with a cost Reduction of 347%
Converted assembly of multiple components into a Zinc die casting resulting in a 34%cost reduction in piece part cost, a reduction in lead time and reduced inventory.
We converted one steel machined plate requiring 22 secondary operations into a complete Zinc die casting with a cost reduction of 422%.

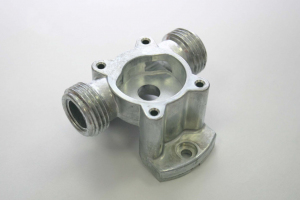

Converted a machined Bronze pump housing into a Zinc die casting resulting in a 82% cost reduction in raw material alone and removed the need for customer to hand clean the parts.

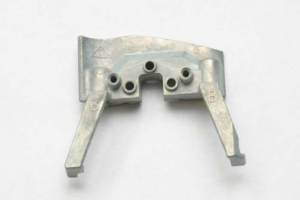

Converted a ABS plastic component into a Zinc die casting resulting in increased strength to meet customer demands, the ability to ground mating parts which solved customers problem & met the target price.
