Made In USA
Progressive Die & Metal
Our Progressive Die, Deep Draw and Compound stamper has been in business for over 85 years. They have NO DEBT and they have invested heavily in SERVO driven stamping presses. This allows us to be extremely competitive…
Our custom precision metal stamping facilities average 80 years in business and are in excellent financial shape. Our ISO-certified stamping services can be produced using a wide variety of materials both metal and non-metallic. Stampings are created by using custom-made individual or family dies. You then insert those custom-made dies into a wide diversity of stamping machines. Different types of stamping machines provide different core competencies. Our facilities presses include SERVO driven presses, conventional flywheel presses, hybrid presses, straight side presses, gap presses as well as Four slide and Multi-slide presses. All of these machines have strengths and unique capabilities to produce an extremely wide variety of components. Our vast array of stamping machines provide a wide variety of ways to stamp, form, draw, coin as well as bend metal and non-metallic materials. The goal is to use the best piece of equipment available to produce each part for the Lowest Total Cost.

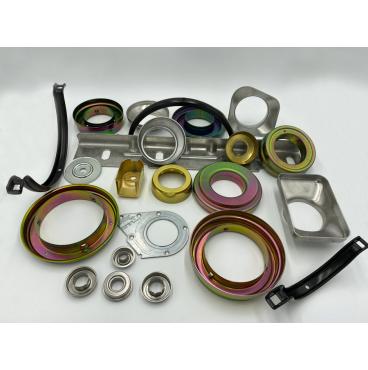

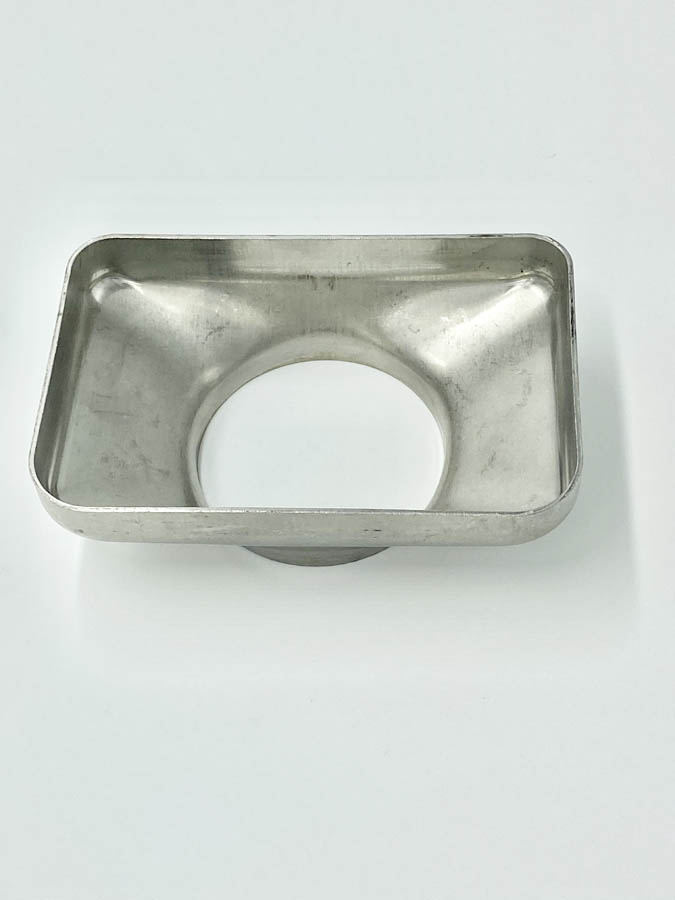

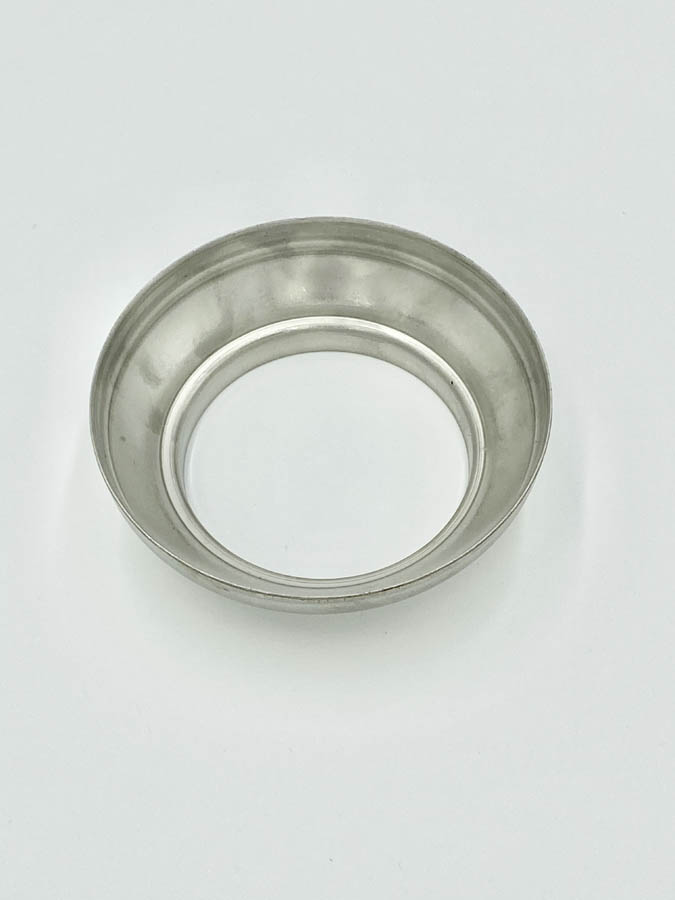

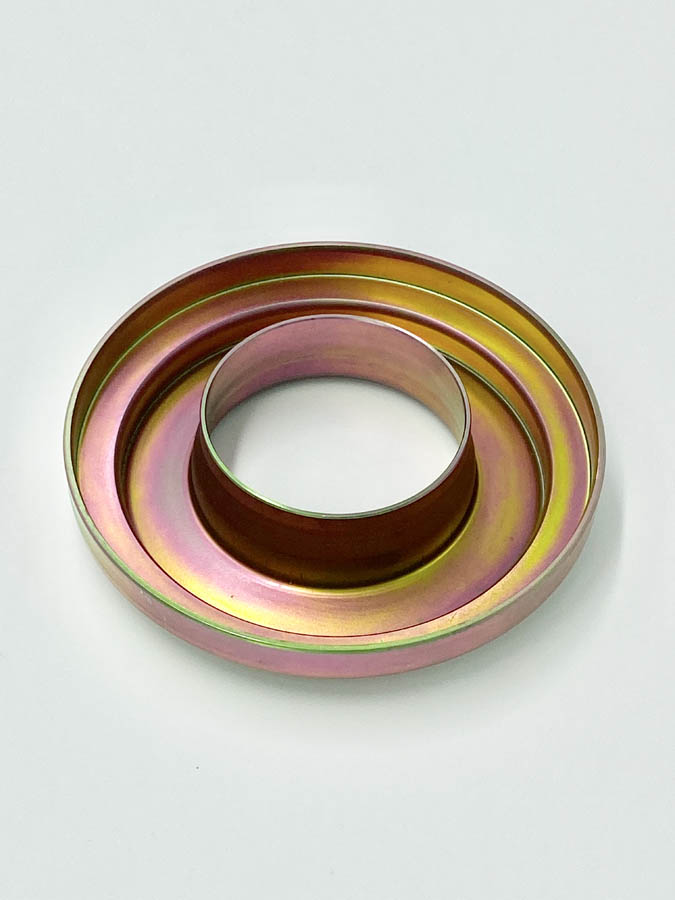

Custom Deep Drawn

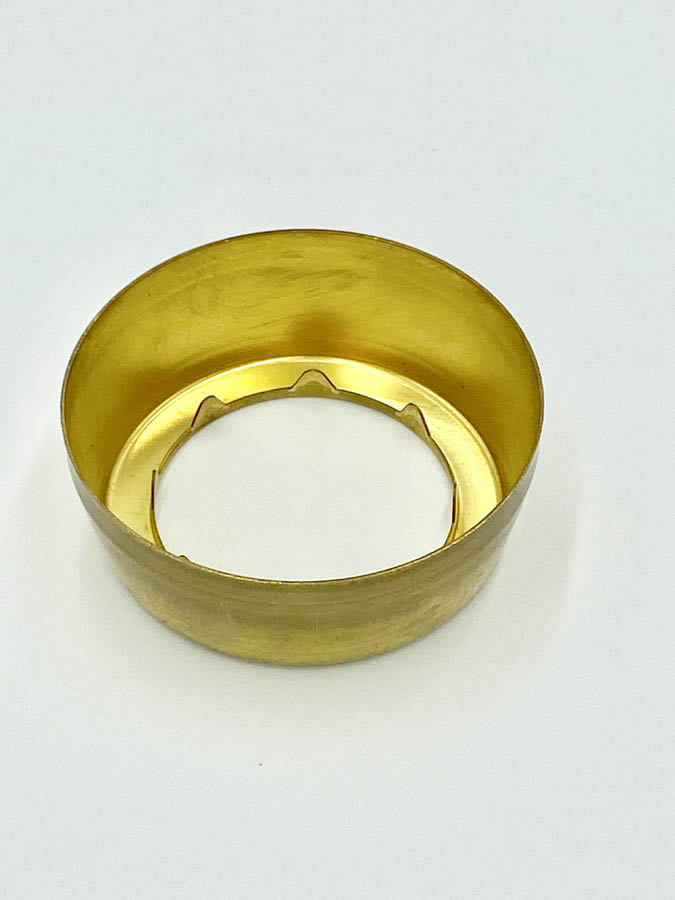

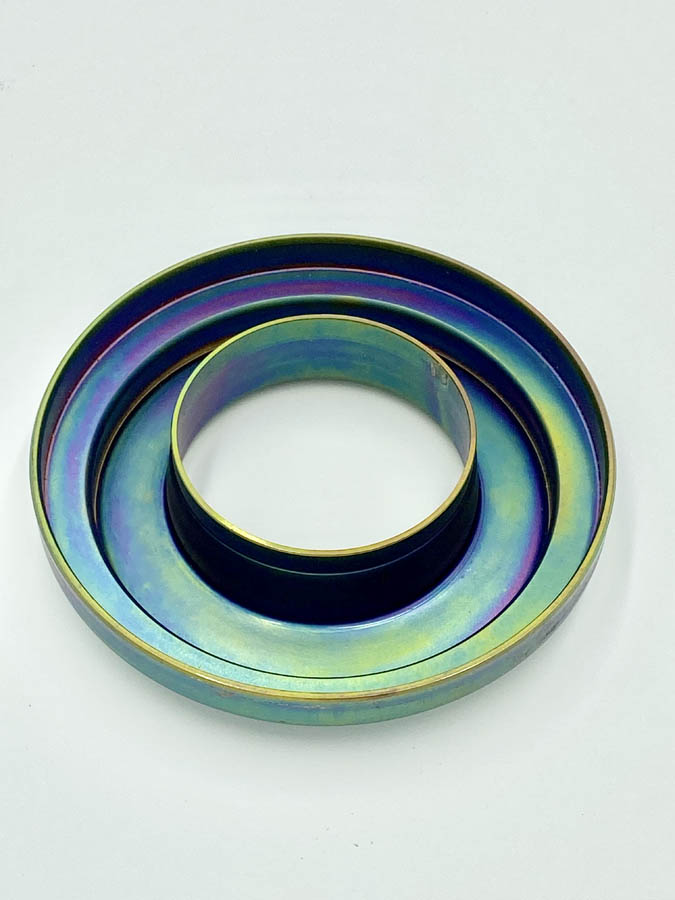

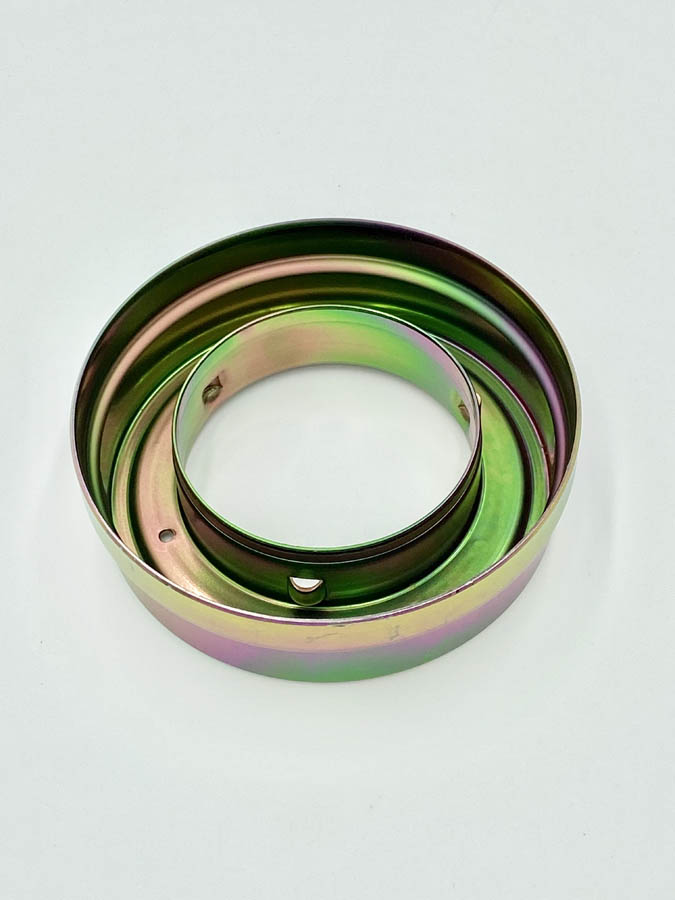

A Deep Drawn stamping is when the depth of the drawn cup exceeds its diameter.
Compound
Compound Stampings are often used when medium to low volume stamped parts need to be produced. Compound stamping dies can be made for a lower cost than is required for a complete progressive die.

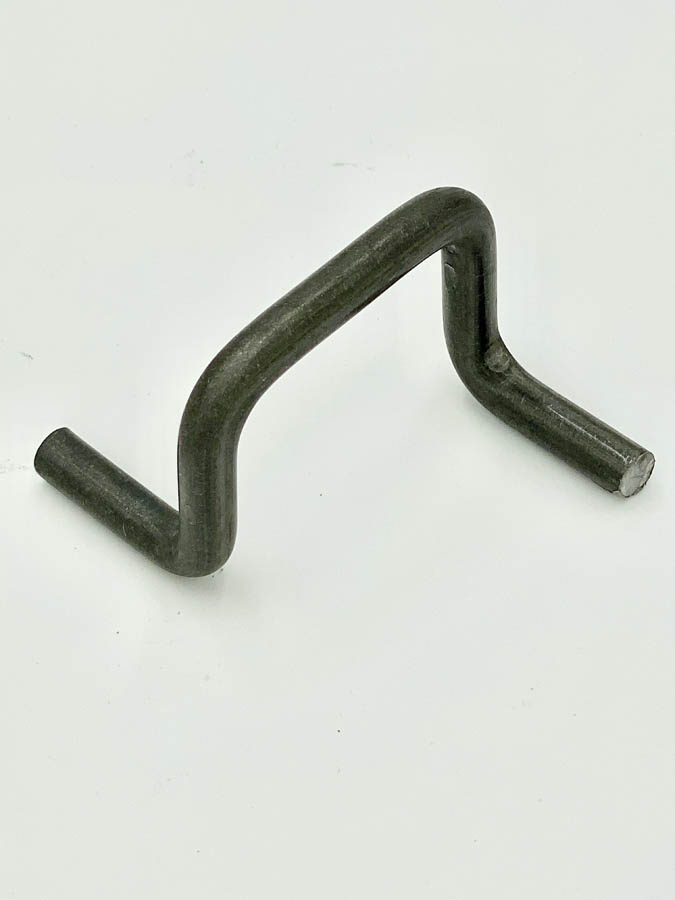

Four Slide & Multi Slide
Depending on the size of the part as well as the part complexity, four-slide & multi-slide machines can often produce parts for a lower total cost than progressive dies.
Capabilities
| Press Capacities | 67 presses ranging from 10 tons to 325 tons including 7 Servo presses, 30 Four-slide/Multi-slide presses |
| Material thickness | Flat or Coiled material from .010" to .325". Wire materials from .006 to .500" |
| Common Industries | Aerospace, Agriculture, Appliance, Automotive Tier (1, 2 & 3), Communications, Construction, Electric Motors, Electronics, Emerging Energies, Fire Arms, Fluid Powers, Furniture, Green Building, Hardware, Industrial Packaging, Lawn & Garden, Locomotive, Marine, Medical, Military, Natural Gas, Plumbing and Truck and Tractor Trailer. |
| Raw materials | Steel, Carbon Steel, Stainless Steel, Aluminum, Brass, Hastelloy, Bronze, Beryllium Copper, Titanium, Platinum and many others. |

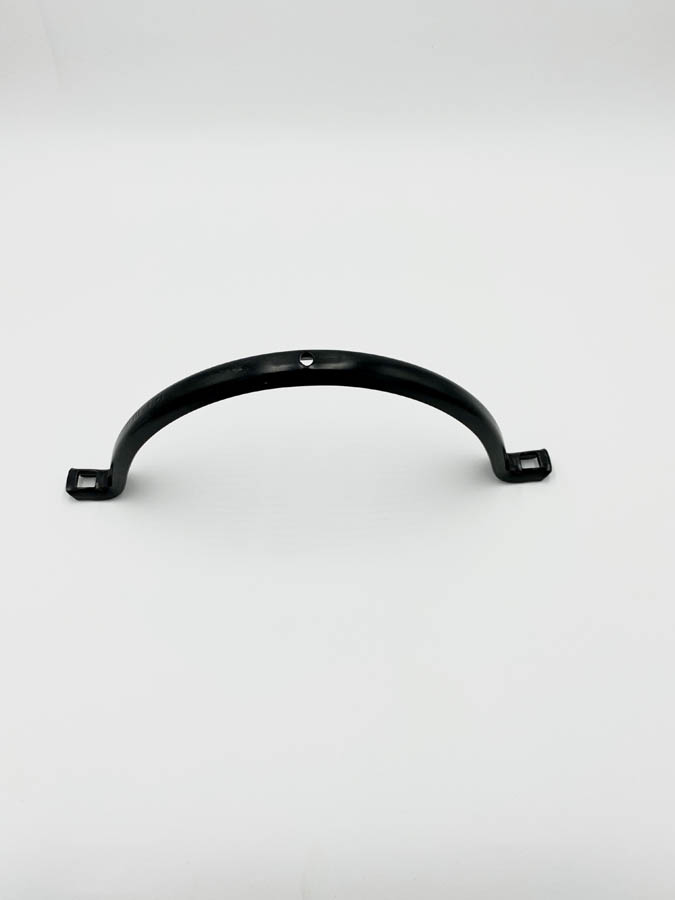

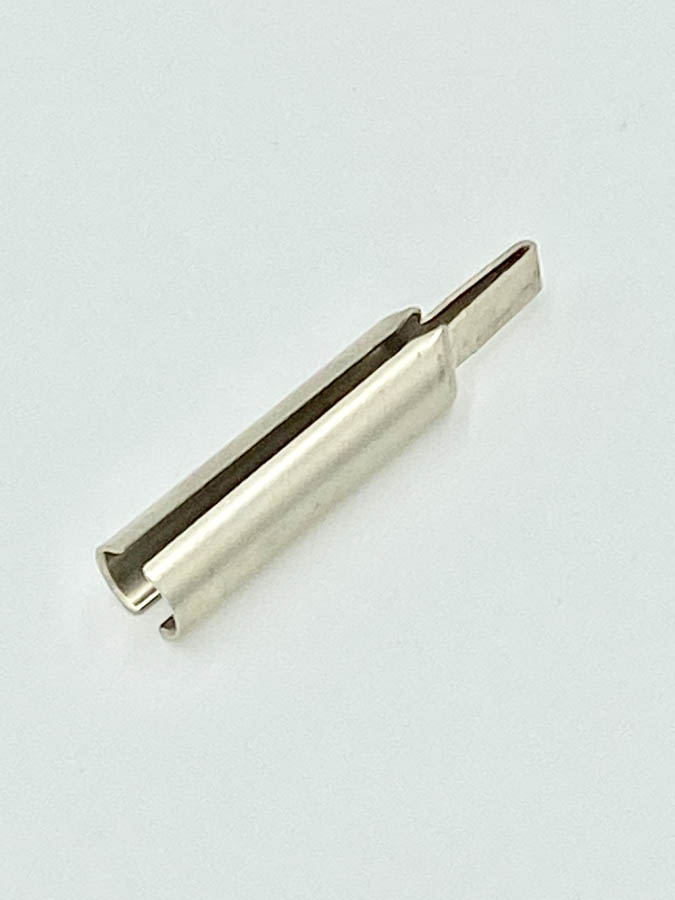

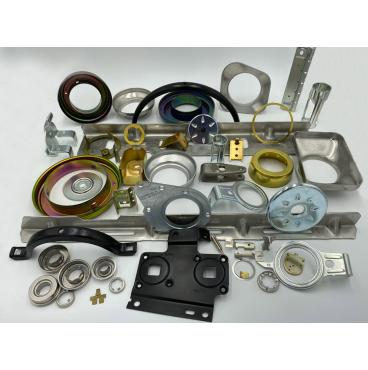

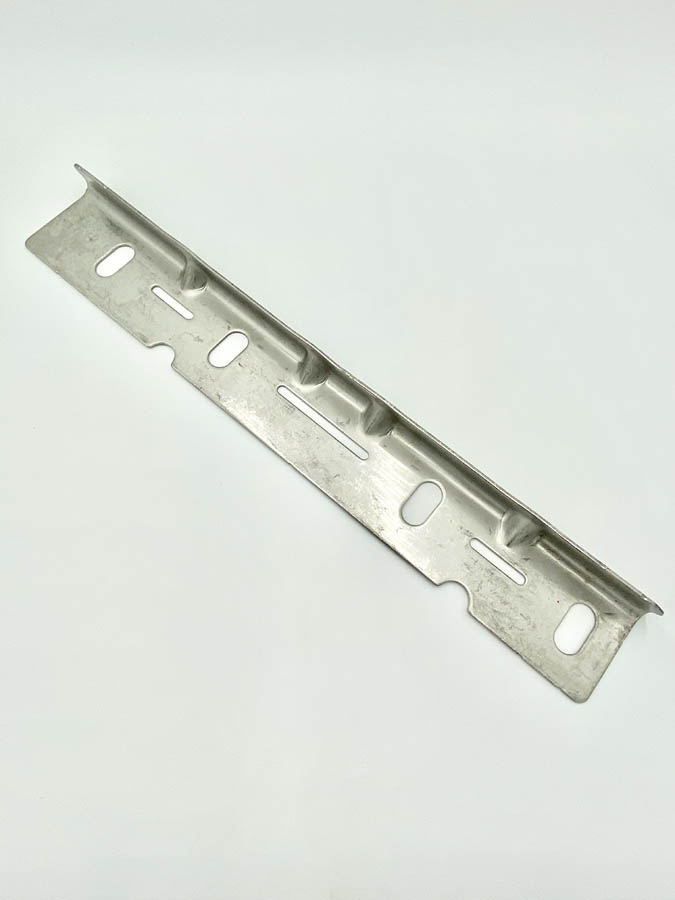

| Common Applications | Brackets, clips, seals, cups, tags, shields, terminals, clamps, latches, retainers, stamped springs, covers, plates, clevises, relay frames, diffusers, diaphragms, heat sinks, frames, washers and many others. |
| Part length | The maximum length of a progressive die stamping in our facility is 30" inches long. |
| Turnkey Tier 1 Line Ready parts | We have decades of experience delivering finished line ready stampings. We purchase all the raw materials as well as manage any secondary operations such as machining, heat treatment, plating, coating as well as assembly. |
| We Welcome Take Over Dies | We have 5 in-house toolmakers who are always ready and willing to take over dies from other stamping suppliers. In our 76 years of business, we have been awarded many consolidation programs. We are ready to assist you and do any retrofitting or tooling adjustments that may be required to your dies. |
| Finished Goods Warehouse | We have a separate 30,000 sqft finished goods warehouse located 5 miles from our facility. We ship to all our customers via VMI, KAN BAN, EDI & JIT. This works great for Disaster Recovery plans. |
| Quality | ISO 9001:2015 Certified, AS 9100:2016 Certified and ITAR Registered. |
| In-House Tooling | We have 8 toolmakers as well as a fully equipped tool room to build and maintain all of our dies. |
Lowest Total Cost
Design For Manufacturability
Technology & Automation
Increased Turns & Reduced Lead Times
Additional Information
Benefits of Partnering with our Stamping facilities:
- Our stamping facilities average 73 years in business and are all in excellent financial shape.
- Supplier Awards & On-Time Deliveries: Our stamping facility has been awarded dozens of quality awards, we are consistently above 98% on time and our facility shows as well as audits extremely well.
- We have single and double-digit PPM numbers with our customers.
- Our facilities combine to have 67 presses including 7 servo driven presses and 30 Four-slide/Multi-slide presses.

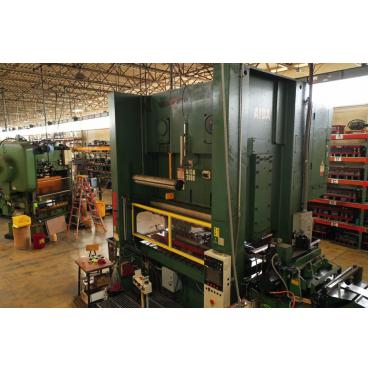

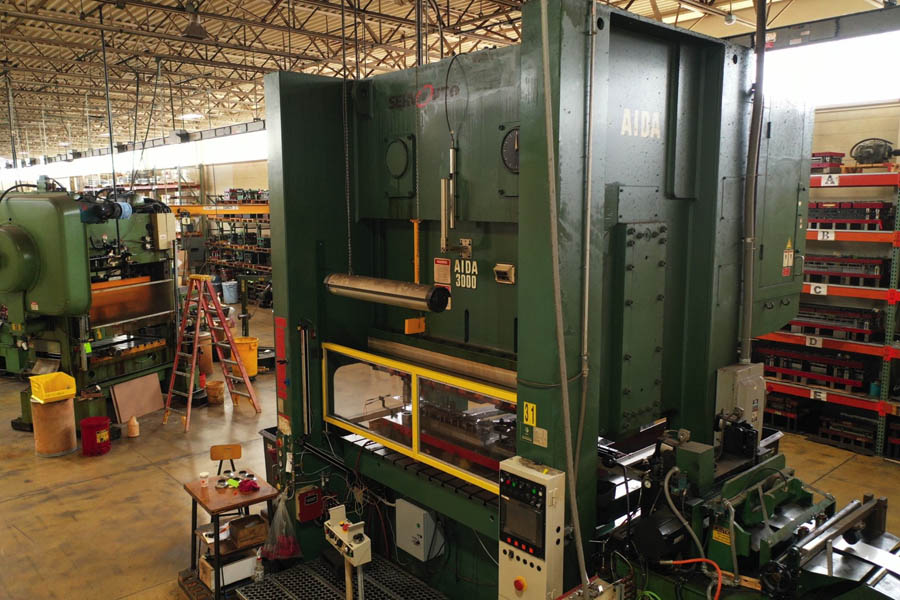

- Our (4) 275 ton AIDA Servo line can act like a 1,100-ton transfer line for some projects.
- We design, build and maintain all of our dies in-house.
- We take complete responsibility for delivering turnkey Tier One line-ready parts.
- We have a separate 30,000 sqft finished goods warehouse that works perfectly for disaster recovery plans.
- Engineering Support & Program Management. Our facility has a wide variety of engineers as well as 8 tool makers in-house. This allows our entire team to work closely with your engineers and materials personnel to develop a stamping die that meets your requirements at the Lowest Total Cost.
- Quality Certifications: Our facilities range from being a minimum of ISO 9001: 2015 Certified & AS9100 Certified.
- (57) Conventional Stamping presses ranging from 10 tons to 325 tons. Including 7 Servo Presses. (4) Identical 275 ton AIDA Servo's, (1) 325 Ton AIDA Straight side Servo & (1) 125 ton AIDA Servo Gap press.
- (10) Multi-Slide Machines
- (20) Four-Slide Machines
- Flat & Coiled Material thicknesses from .010 to .325 with lengths up to 30 inches long.
- Material thickness for flatt material for the Four-slide/Multi-slide machines: = .010 to .093.
- Material thickness for Round wire on the Four-slide Multi-Slide machines: = .005 to .500"
- Wire Diameter for the Four-slide machines: = .125 to .394" wide.
- Wire diameter for the Multi-slide machines: = .005" to .500"
- We can be extremely competitive with both our tooling and our piece part pricing.
- Our customer service team has decades of experience doing VMI, KAN BAN, JIT, EDI or any delivery system.
- We welcome take-over dies and get them on a regular basis.
- We have been awarded countless Quality and delivery awards.
- We have 8 in-house tool makers.
- Our facilities show and audit extremely well.

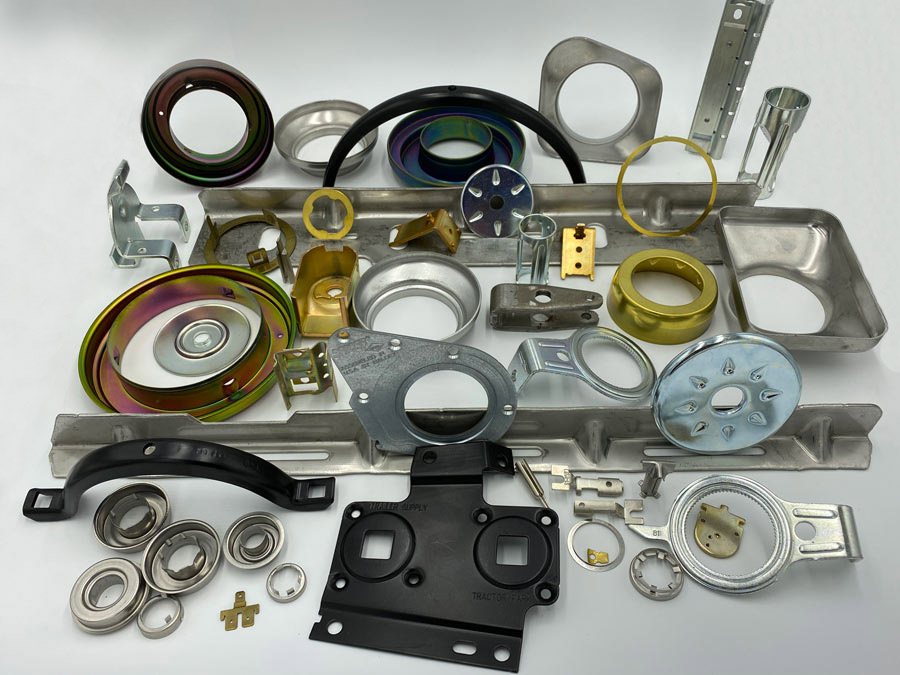

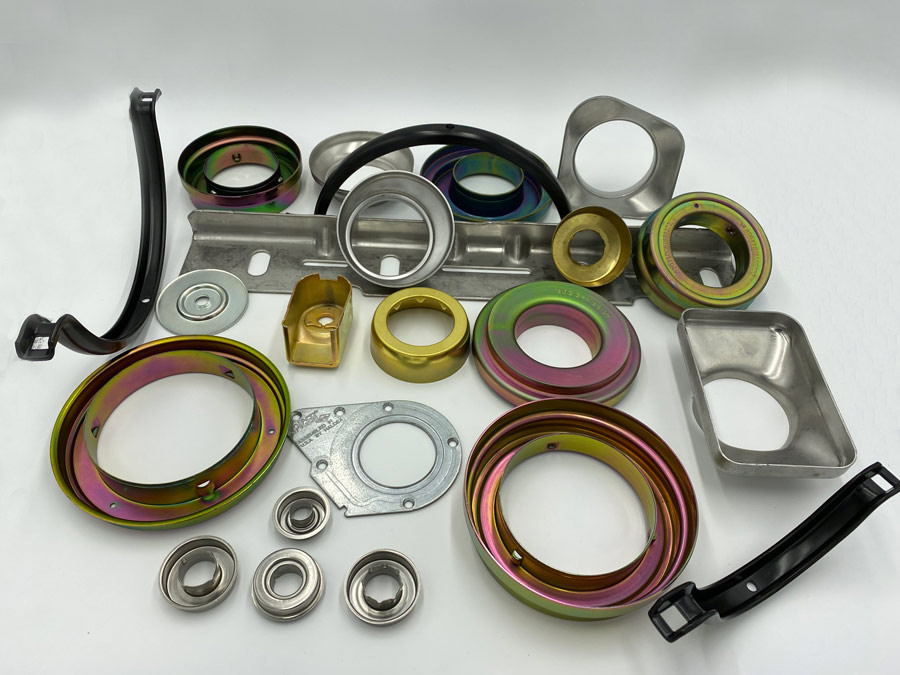

Common Applications of Stampings:
- Brackets
- Clips
- Seals
- Cups
- Tags
- Shields
- Terminals
- Clamps
- Latches
- Retainers
- Springs
- Covers
- Plates

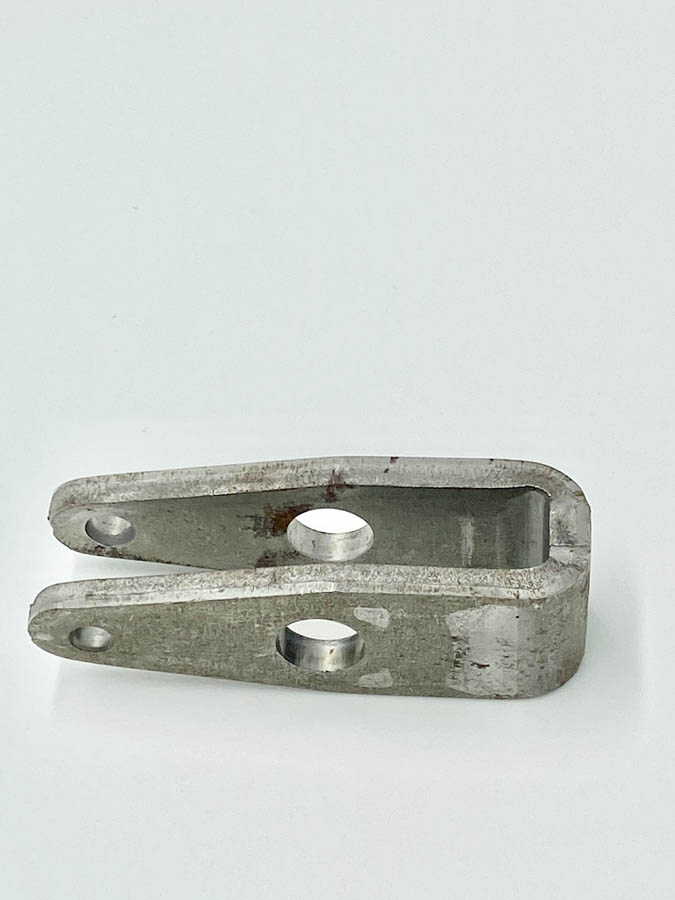

- Clevises
- Relay frames
- Diffusers
- Diaphragms
- Heat sinks
- Frames
- Washers
- ..and many others.
Commonly used materials include:
- Steel
- Carbon Steel
- Stainless Steel
- Aluminum
- Brass
- Hastelloy
- Bronze
- Beryllium Copper
- Titanium
- Platinum
- ..and many others.
- Aerospace
- Agriculture
- Appliance
- Automotive
- Communications
- Construction
- Electric Motors
- Electronics
- Emerging Energies
- Fluid Powers
- Furniture
- Green Building
- Hardware
- Industrial Packaging
- Locomotive
- Marine
- Medical
- Military
- Natural Gas
- Plumbing
- Truck & Tractor Trailer
- ..and many others.
A stamping is forming process used to cut, form and shape either rolled sheets of flat sheets of metal or non-metalic materials using a stamping die. A stamping die can be comprised of many individual workstations that help develop the finished part or it could be a simple blanking die depending on the press and the requirements.
Stamping dies can perform a wide variety of operations such as cutting, coining, forming, bending, extruding, drawing, embossing, tapping, assembly as well as many others.
- It is one of the most cost-effective manufacturing processes available to produce metal components in a wide variety of shapes and sizes, using almost any material you can imagine.
- The tooling is relatively inexpensive and can last for decades.
- You can convert parts from a wide variety of other metal forming practices such as fabrications, castings, forgings, MIM, powdered metal as well as weldments into parts produced in a progressive die.
- You can form as well as draw material to create different material thicknesses, shapes, corners and radiuses to meet your required application. You can punch holes and many times eliminate the need for most machining.
- The tooling can be designed to do tapping, as well as in die assembly of multiple components together.
- You can coin areas to hold tight tolerances as well as hold tight flatness requirements.
Explore Other Manufacturing Solutions
Explore Manufacturing Solutions
Machining
Our machining facilities average 72 years in business and have over 500 pieces of CNC Swiss as well as CNC Milling/Turning, Multiple Spindle, Davenport, Buffoli, Hydromat as well as Index and cut off machines.
Injection Molding
Our 4 injection molding facilities have a total of 195 injection molding presses ranging from 25 tons to 400 tons and 400 tons to 2,100 tons. Our facilities run 3 shifts 24 hours per day 5 days per week.
Zinc Die Castings
Our Zinc Die-casting facility has been in business for 54 years and has been awarded 8 NADCA awards for designing the best new die-cast part.
View Some of Our Case Studies
Machined Sand Casting Converted into a Progressive Die Stamping = A million Dollar Cost Reduction.
Our Wire Form and Multi Slide Manufacturing facility was presented with a high volume Consumer Products Wire Form opportunity. Our engineering and quoting team were asked to quote a very difficult wire…
Converted a steel machined casting into a steel stamping using a Compound stamping die. The end result is a huge cost reduction.
We are Coining 70% of the material thickness & still holding a flatness of .0035.
