Made In USA
Custom Deep Drawn

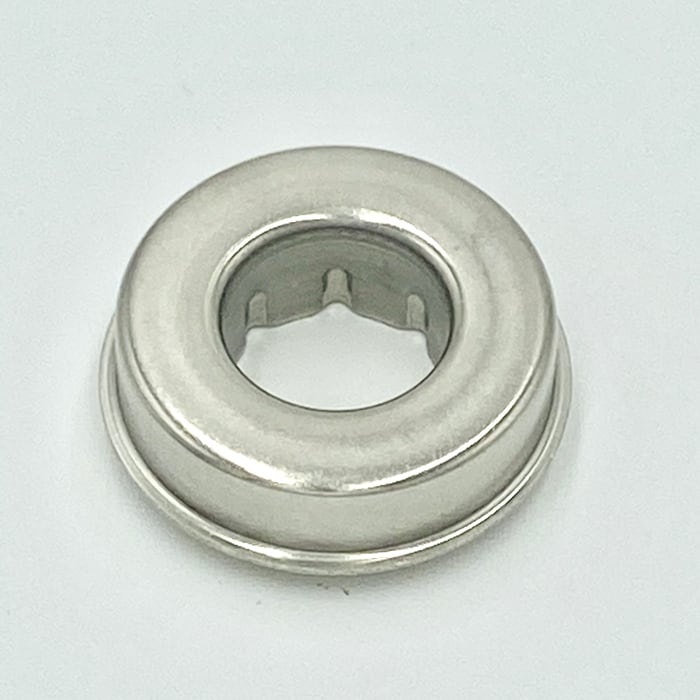

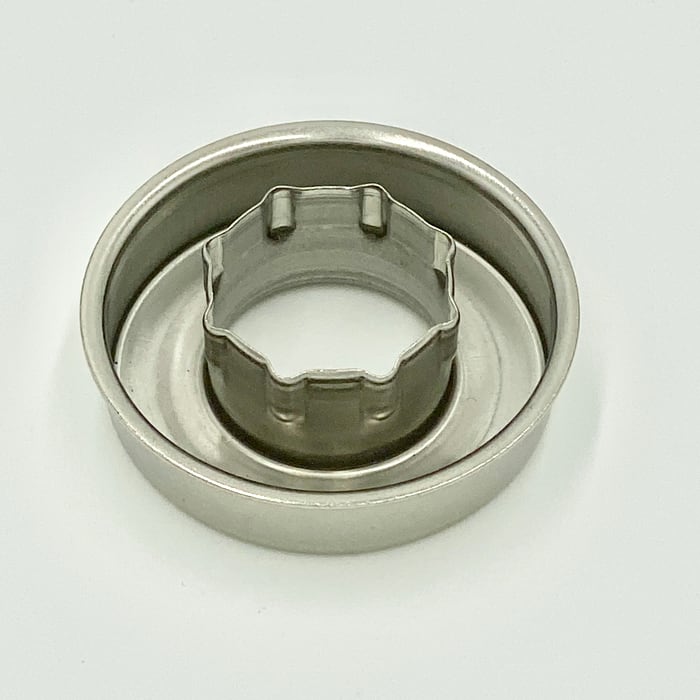

A Deep Drawn stamping is when the depth of the drawn cup exceeds its diameter.
Let us serve your Progressive die stamping requirements.
Progressive Die & Metal Stamping Services
Our high-speed progressive die and metal stamping services have been in business for over 76 years and have NO debt. We have 36 total presses ranging from 10 tons to 325 tons. We have 30 conventional presses as well as 6 SERVO presses to meet your manufacturing needs. Our engineers have decades of experience as well as the latest CAD software to partner with our customers to help design the best progressive stamping die for your application. We also have a state-of-the-art tool room to build as well as maintain all of our dies in-house. With a combination of utilizing the newest press technologies in SERVO's, having over 85 years of experience as well as 5 full-time toolmakers in the house as well as NO DEBT, we are able to be extremely competitive with both our tooling and our piece part pricing.
Capabilities
| Presses | 38 presses ranging from 10 to 325 tons. |
| Part Dimensions | 0.006" to 0.350" Thickness & The maximum length of a progressive die stamping in our facility is 30" inches long. |
| Raw materials | Steel, Carbon Steel, Stainless Steel, Aluminum, Brass, Hastelloy, Bronze, Beryllium Copper, Titanium, Platinum and many, Plastics and many others. |
| Industries Served | Agriculture, Automotive, Plumbing, Truck & Tractor Trailer See Full List |

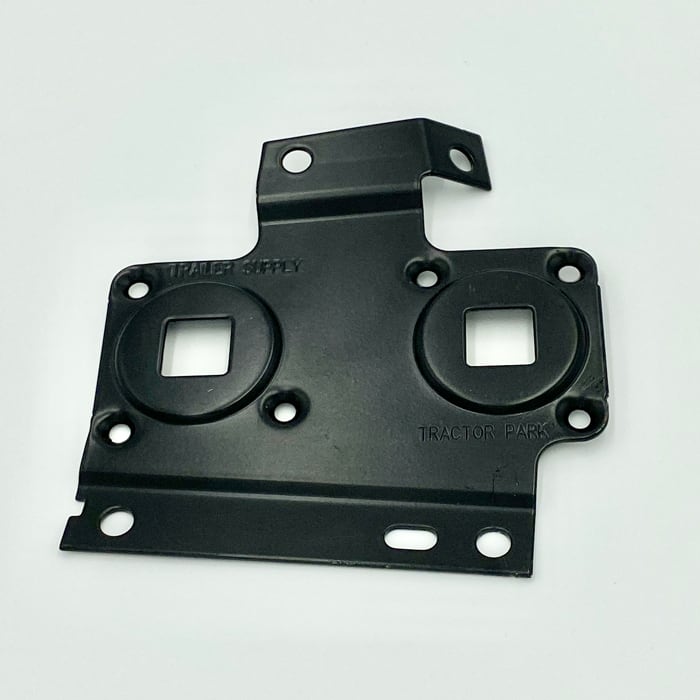

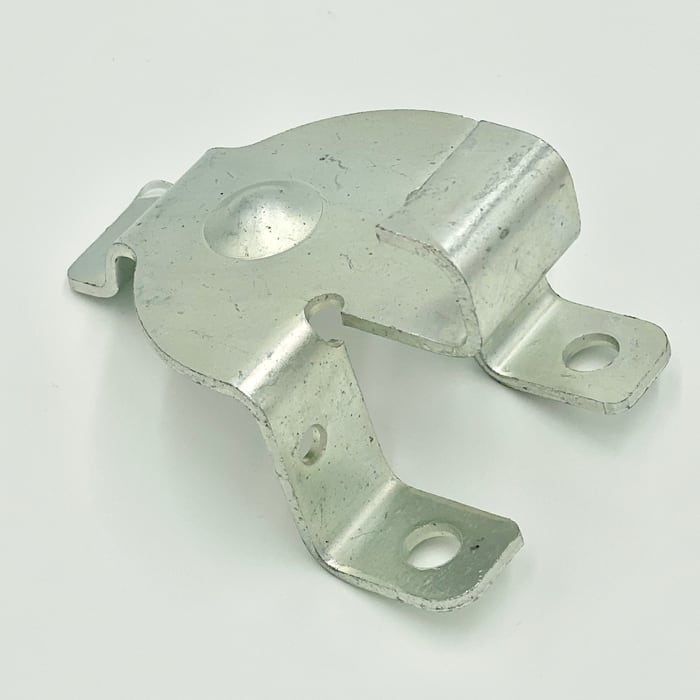

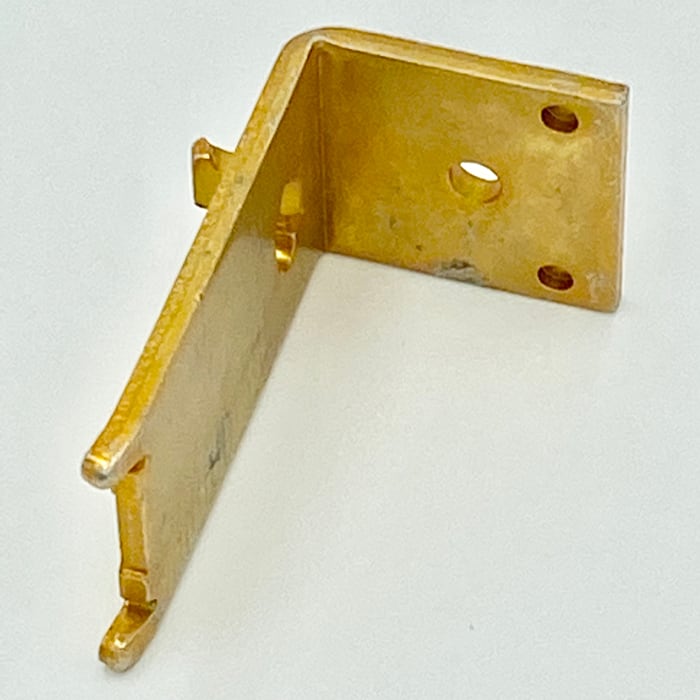

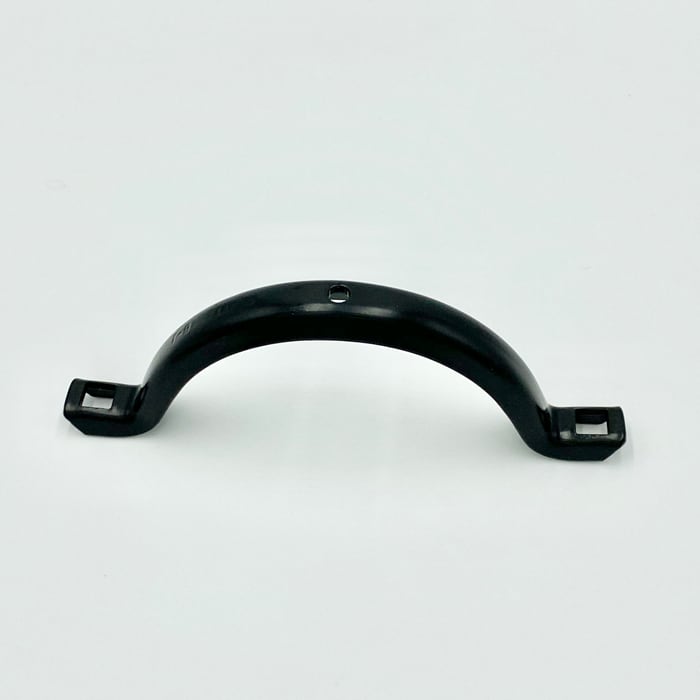

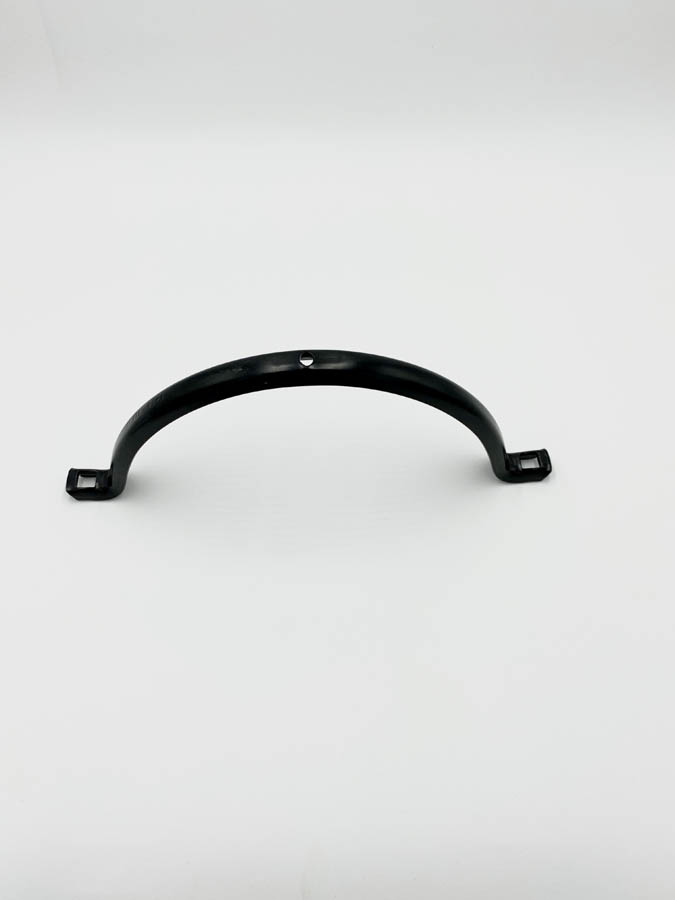

| Common Applications | Brackets, Clips, seals, cups, tags, shields, terminals, clamps, latches, retainers, stamped springs, covers, plates, clevises, relay frames, diffusers, diaphragms, heat sinks, frames, washers and many others. |
| Quality | ISO 9001:2015 Registered |
| New & Take Over dies | Five (5) in house toolmakers to build & maintain all dies as well as retrofit all take over dies. |
Lowest Total Cost
Design For Manufacturability
Technology & Automation
Increased Turns & Reduced Lead Times
Additional Information
Cost-effective
It is one of the most cost-effective manufacturing processes available to produce metal components in a wide variety of shapes and sizes, using almost any material you can imagine.
Long Lasting Tooling
The tooling is relatively inexpensive and can last for decades.
Ability to Convert Parts
You can convert parts from a wide variety of other metal forming practices such as fabrications, castings, forgings, MIM, powdered metal as well as weldments into parts produced in a progressive die.
Form and Draw to Meet Application
You can form as well as draw material to create different material thicknesses, shapes, corners and radiuses to meet your required application.
Reduce the need for most machining
You can punch holes and many times eliminate the need for most machining.
Tapping and Die Assembly
The tooling can be designed to do tapping, as well as in die assembly of multiple components together.
Tight Tolerances, Tight Flatness
You can coin areas to hold tight tolerances as well as hold tight flatness requirements.
38 Presses ranging fom 10 to 325 tons
We have a combination of 38 total presses ranging from 10 to 325 tons. We have 30 conventional presses as well as 7 SERVO presses to meet your manufacturing needs.
7 SERVO-driven Stamping Presses
Our manufacturer has invested heavily in 7 SERVO driven AIDA stamping presses over the last 10 years. These presses allow us to run dies much faster and more efficiently than the vast majority of our competitors. We currently have 7 servo presses along with an assortment of 30 other presses.
Common applications of our progressive die and metal stamping services include almost any application requiring metal.
- Brackets
- Clips
- Seals
- Cups
- Tags
- Shields
- Terminals
- Clamps
- Latches
- Retainers
- Springs
- Covers
- Plates
- Clevises
- Relay frames
- Diffusers
- Diaphragms
- Heat sinks
- Frames
- Washers
- Many others
- Steel
- Carbon Steel
- Stainless Steel
- Aluminum
- Brass
- Hastelloy
- Bronze
- Beryllium Copper
- Titanium
- Platinum
- Plastics
- ..and many others.
- Aerospace
- Agriculture
- Appliance
- Automotive
- Communications
- Construction
- Electric Motors
- Electronics
- Emerging Energies
- Fluid Powers
- Furniture
- Green Building
- Hardware
- Industrial Packaging
- Locomotive
- Marine
- Medical
- Military
- Natural Gas
- Plumbing as well as Truck & Tractor Trailer
- ..and many others
Disaster Recovery Plans
We have a separate 30,000 sqft finished goods warehouse located 5 miles from our facility. We ship to all our customers via VMI, KAN BAN, EDI & JIT.
Advantages of using the Servo Press
Progressive dies can be run at their highest efficiencies possible in SERVO driven presses. Due to the infinite, optional stroke profiles that a servo press can be programmed for, it is always capable of running problem stampings more accurately and more efficiently than a conventional stamping press. In many cases the SERVO press technology can provide the ability to eliminate some operations and increase the production rate of exsiting progressive dies.
- Servo presses DO NOT require special dies. As long as a current progressive die will fit in the bed of one of our presses, you can utilize this technology.
- By utilizing the technology advantages of the Servo presses, our manufacturing facility has been very succesful at converting parts from a wide variety of other metal forming practices to metal stampings. We have converted parts that had previously been made as welded fabrications, castings, forgings and MIM parts into progressive die stampings.
- The additional controls available with the Servo presses provide many advantages. They allow us to form as well as draw material, to create different material thicknesses, shapes, corners and radiuses to meet your application that may not be possible using a conventional fly wheel press. We can punch tight holes and in some cases eliminate the need for machining.
- The Servo presses allow us to coin areas in parts as well as hold tighter tolerances & flatnesses.
Explore Other Stamping Solutions
Explore Stampings
Compound
Compound Stampings are often used when medium to low volume stamped parts need to be produced. Compound stamping dies can be made for a lower cost than is required for a complete progressive die.
Wire Forms, Springs & Welded Assemblies
We have been producing Wire Forms, Springs, Clips, Welded assemblies as well as Four-Slide & Multi-Slide parts for 68 years.
View Some of Our Case Studies
Machined Sand Casting Converted into a Progressive Die Stamping = A million Dollar Cost Reduction.
We are Coining 70% of the material thickness & still holding a flatness of .0035.
